全志H3平台DMA框架

1概要

Dmaengine是linux內核dma驅動框架,針對DMA驅動的混亂局面內核社區提出了一個全新的框架驅動,目標在統一dma API讓各個模塊使用DMA時不用關心硬件細節,同時代碼復用提高,並且實現異步的數據傳輸,降低機器負載。

1.1基本結構

\



dmaengine向其他模塊提供接口;virt-dma,Virtual DMA向dmaengine提供初始化函數,傳輸各階段狀態登記鏈表,desc_free函數等;dma drivers為具體DMA控制器的驅動代碼,其通過dma_async_device_register()注冊到dmaengine。

2 代碼架構

lli: linked list ltem, the DMA block descriptor

2.1源碼分析

linux-3.4/drivers/dma

dmaengine.c

\

\



注冊dma類,在調用dma_async_device_register注冊具體平台的DMA設備時會用到。

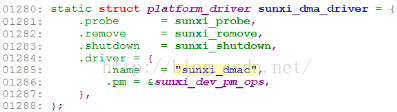

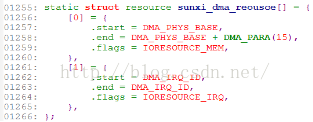

sunxi-dma.c

\

\

\



sunxi_probe解析:

1.1 ret = request_irq(irq, sunxi_dma_interrupt, IRQF_SHARED,dev_name(&pdev->dev), sunxi_dev);//注冊中斷

1.2 clk_get(&pdev->dev, "dma");//獲取時鐘

drivers/clk/sunxi/clk-sun8iw7.c

SUNXI_CLK_PERIPH (dma,0,0,0,0,0,0,0,0,0,0,BUS_RST0,BUS_GATE0,0,0,6, 6,0,&clk_lock,NULL, 0)

struct periph_init_data sunxi_periphs_init[] = {

{"dma",0,ahb1mod_parents,ARRAY_SIZE(ahb1mod_parents),&sunxi_clk_periph_dma}

}

drivers/clk/sunxi/clk-periph.h定義SUNXI_CLK_PERIPH宏

sunxi_init_clocks-> sunxi_clk_register_periph-> clk_register(NULL, &periph->hw);

1.3dma_pool_create, 創建一個一致內存塊池,其參數name是DMA池的名字,用於診斷用,參數dev是將做DMA的設備,參數size是DMA池裡的塊的大小,參數align是塊的對齊要求,是2的冪,參數allocation返回沒有跨越邊界的塊數(或0)。

1.4vchan_init初始化virt_dma_chan

1.5初始化sunxi_dev->dma_dev結構成員後,調用dma_async_device_register(&sunxi_dev->dma_dev)注冊到dmaengine

1.5.1 get_dma_id(device)//建立idr機制,分配一個新idr entry,將返回值存儲在&sunxi_dev->dma_dev->dev_id中。

1.5.2 在DMA完全准備好之前,已經有客戶端在等待channel時,遍歷所有的channel,調用dma_chan_get(chan)

1.5.3 list_add_tail_rcu(&device->global_node, &dma_device_list)//將&dma_device.global_node加入靜態鏈表中。

1.5.4 dma_channel_rebalance

1.5.4.1 chan->device->device_alloc_chan_resources(chan); <=> sunxi_alloc_chan_resources//無實際作用,最後返回0

1.5.4.2 balance_ref_count

1.6最後調用sunxi_dma_hw_init(sunxi_dev);使能時鐘, -> clk_prepare_enable(sunxi_dev->ahb_clk);

2.2 數據結構關系圖

\



dma_device結構體集成DMA控制器的核心函數,實現最底層的具體操作; 新建立的sunxi_chan對應每個通道,該結構體一面存放用戶配置的cfg成員,另外就是包含virt_dma_chan,它用virt-dma提供的函數初始,並將vc->chan.device_node鏈接到dma_device結構體的channels鏈表中,後續實際的DMA通道的申請就是申請vc->chan通道,而vc->chan在內核中建立相應的文件節點,即chan->dev,生成的節點如下:

/sys/devices/platform/sunxi_dmac/dma/dma0chan0



在准備一次傳輸時,e.g chan->device->device_prep_dma_sg 即調用sunxi_prep_dma_sg,創建sunxi_desc結構體並初始化,該結構體可以理解為通道中具體運載工具,在傳輸完成後銷毀。



在不同的傳輸階段,會將Virt_dma_desc.node鏈入不同的virt_dma_chan鏈表中,如desc_submitted,desc_issued,desc_completed。



其他模塊在調用dmaengine提供的接口來使用DMA時,是通過遍歷&dma_device_list鏈表找到相應的dma device。



在sunxi_start_desc函數中,會將txd->lli_phys寫入DMA寄存器中,之前設置的相應參數,如slave_id,起始地址等,將由DMA控制器來解析,選擇等。

2.3 對外接口函數

include/linux/dmaengine.h

#define dma_request_channel(mask, x, y) __dma_request_channel(&(mask), x, y)

struct dma_chan *__dma_request_channel(dma_cap_mask_t *mask, dma_filter_fn fn, void *fn_param)// mask,所有申請的傳輸類型的掩碼;fn, DMA驅動私有的過濾函數;fn_param,傳入的私有參數

1.從dma_device_list全局鏈表中找到可用的dma_device

2.private_candidate(mask, device, fn, fn_param);//根據mask判斷device是否符合要求,在滿足條件的情況下,a.如果所有的通道都是公有的,在沒有用戶使用的情況下執行b,否則沖突,返回NULL;b.遍歷dam_device.channels鏈表中的dma_chan,找到第一個client_count為0的chan.具體代碼如下:



static struct dma_chan *private_candidate(dma_cap_mask_t *mask, struct dma_device *dev,
					  dma_filter_fn fn, void *fn_param)
{
	struct dma_chan *chan;

	if (!__dma_device_satisfies_mask(dev, mask)) {
		pr_debug("%s: wrong capabilities\n", __func__);
		return NULL;
	}
	/* devices with multiple channels need special handling as we need to
	 * ensure that all channels are either private or public.
	 */
	if (dev->chancnt > 1 && !dma_has_cap(DMA_PRIVATE, dev->cap_mask))
		list_for_each_entry(chan, &dev->channels, device_node) {
			/* some channels are already publicly allocated */
			if (chan->client_count)
				return NULL;
		}

	list_for_each_entry(chan, &dev->channels, device_node) {
		if (chan->client_count) {
			pr_debug("%s: %s busy\n",
				 __func__, dma_chan_name(chan));
			continue;
		}
		if (fn && !fn(chan, fn_param)) {
			pr_debug("%s: %s filter said false\n",
				 __func__, dma_chan_name(chan));
			continue;
		}
		return chan;
	}

	return NULL;
}



3.找到合適的chan之後,

dma_cap_set(DMA_PRIVATE, device->cap_mask);//to disable balance_ref_count as this channel will not bepublished in the general-purpose allocator

device->privatecnt++;

err = dma_chan_get(chan);//a.獲取dma channel’s parent driver模塊,即該模塊計數加1;

b.int desc_cnt = chan->device->device_alloc_chan_resources(chan);// <=> sunxi_alloc_chan_resources//設置schan->cyclic = false;

c.balance_ref_count(chan)//其目的是確保dma channel’s parent driver模塊數與client數一致



include/linux/dmaengine.h

static inline int dmaengine_slave_config(struct dma_chan *chan,struct dma_slave_config *config)

<=> dmaengine_device_control(chan, DMA_SLAVE_CONFIG,(unsigned long)config);

<=> chan->device->device_control(chan, cmd, arg);

<=> sunxi_control <=> sunxi_set_runtime_config(chan, (struct dma_slave_config *)arg);//最終將用戶配置的相關參數存儲到sunxi_chan.cfg中。



static inline struct dma_async_tx_descriptor *dmaengine_prep_dma_cyclic(

struct dma_chan *chan, dma_addr_t buf_addr, size_t buf_len,

size_t period_len, enum dma_transfer_direction dir,

unsigned long flags)

{

return chan->device->device_prep_dma_cyclic(chan, buf_addr, buf_len,period_len, dir, flags, NULL);

}



dmaengine_submit(struct dma_async_tx_descriptor *desc)

<=> drivers/dma/virt-dma.c : vchan_tx_submit

cookie = dma_cookie_assign(tx);//遞增cookie

list_add_tail(&vd->node, &vc->desc_submitted);//加入desc_submitted隊列



static inline void dma_async_issue_pending(struct dma_chan *chan)

{

chan->device->device_issue_pending(chan);

}

<=> sunxi_issue_pending

a.vchan_issue_pending(&schan->vc)->

list_splice_tail_init(&vc->desc_submitted, &vc->desc_issued);

__list_splice(list, head->prev, head);//

INIT_LIST_HEAD(list);//清空list

b.if (list_empty(&schan->node))

list_add_tail(&schan->node, &sdev->pending);//將schan->node加入鏈表sdev->pending

c.tasklet_schedule(&sdev->task);//調度sdev->task,執行sunxi_dma_tasklet->

sunxi_start_desc//virt_dma_desc結構變量vd為空時停止本次DMA傳輸;否則,設置對應channel的中斷號,DMA操作模式,將txd->lli_phys寫入寄存器,正式DMA傳輸。



drivers/dma/dmaengine.c

void dma_release_channel(struct dma_chan *chan)

1.dma_chan_put

chan->client_count--;

module_put(dma_chan_to_owner(chan));

if (chan->client_count == 0)

chan->device->device_free_chan_resources(chan); <=> sunxi_free_chan_resources->

vchan_free_chan_resources: 獲取所有的desc_submitted、desc_issued、desc_completeddescriptors之後,調用vchan_dma_desc_free_list(vc, &head):

while (!list_empty(head)) {

struct virt_dma_desc *vd = list_first_entry(head,struct virt_dma_desc, node);

list_del(&vd->node);

dev_dbg(vc->chan.device->dev, "txd %p: freeing\n", vd);

vc->desc_free(vd); // <=> sunxi_free_desc,釋放virt_dma_desc

}

2.判斷--chan->device->privatecnt為0時,

dma_cap_clear(DMA_PRIVATE, chan->device->cap_mask)



3 使用流程



\



注意事項:

回調函數裡不允許休眠,以及調度;

回調函數時間不宜過長;

Pending並不是立即傳輸而是等待軟中斷的到來,cyclic模式除外;

在dma_slave_config中的slave_id對於devices必須要指定.

4 實例分析

drivers/char/dma_test/sunxi_dma_test.c

\



創建sunxi_dma_test類及其屬性文件test、help

當向test輸入0時,即調用dma_test_main(0)-> case_memcpy_single_chan()

1.buf_group *buffers = NULL;buffers = init_buf();//分配好內存

typedef struct {

unsigned int src_va;

unsigned int src_pa;

unsigned int dst_va;

unsigned int dst_pa;

unsigned int size;

}buf_item;



typedef struct {

unsigned int cnt;

buf_item item[BUF_MAX_CNT];

}buf_group;

2. chan = dma_request_channel(mask , NULL , NULL);//根據mask申請一個可用的通道

3.sg_alloc_table(&src_sg_table, buffers->cnt, GFP_KERNEL)//Allocate and initialize an sg table

使用scatterlist的原因就是系統在運行的時候內存會產生很多碎片,比如4k,100k的,1M的,有時候對應磁盤碎片,總之就是碎片。而在網絡 和磁盤操作中很多時候需要傳送大塊的數據,尤其是使用DMA的時候,因為DMA操作的物理地址必須是連續的。假設要1M內存,此時可以分配一個整的1M內 存,也可以把10個10K的和9個100K的組成一塊1M的內存,當然這19個塊可能是不連續的,也可能其中某些或全部是連續的,總之情況不定,為了描述 這種情況,就引入了scatterlist,其實看成一個關於內存塊構成的鏈表就OK了。

sg_set_buf(sg, phys_to_virt(buffers->item[i].src_pa), buffers->item[i].size);

sg_dma_address(sg) = buffers->item[i].src_pa;

4.dmaengine_slave_config(chan , &config);//配置參數,如傳輸方向,slave_id等。

5.tx = chan->device->device_prep_dma_sg(chan, dst_sg_table.sgl, buffers->cnt,

src_sg_table.sgl, buffers->cnt, DMA_PREP_INTERRUPT | DMA_CTRL_ACK);

准備一次多包傳輸,散列形式,返回一個傳輸描述符指針。

<=> sunxi_prep_dma_sg: //

a. vchan_tx_prep,初始化virt_dma_desc;

b.sunxi_alloc_lli//調用dma_pool_alloc從sunxi_dmadev.lli_pool內存塊池分配內存。

c.sunxi_cfg_lli//配置sunxi_dma_lli相應參數,如flag,源地址,目的地址,數據長度等。

6.設置回調函數

dma_info.chan = chan;

init_waitqueue_head(&dma_info.dma_wq);

atomic_set(&dma_info.dma_done, 0);

tx->callback = __dma_callback;//喚醒中斷;設置pinfo->dma_done為1。

tx->callback_param = &dma_info;

7.加入傳輸隊列, cookie = dmaengine_submit(tx);

8.開始傳輸,dma_async_issue_pending(chan);

9.等待傳輸結束,ret = wait_event_interruptible_timeout(dma_info.dma_wq,atomic_read(&dma_info.dma_done)==1, timeout);

10.DMA傳輸完成後,產生中斷,其中斷處理函數為sunxi_dma_interrupt,

ch->desc = NULL;

vchan_cookie_complete(&desc->vd);

sunxi_start_desc(ch);//vchan_cookie_complete會釋放virt_dma_desc,故會正常退出此次DMA傳輸。

vchan_cookie_complete解析:

a.dma_cookie_complete(&vd->tx);//設置cookie

b.list_add_tail(&vd->node, &vc->desc_completed);

c.tasklet_schedule(&vc->task); -> vchan_complete

list_splice_tail_init(&vc->desc_completed, &head);

list_del(&vd->node);

vc->desc_free(vd);ósunxi_free_desc//釋放virt_dma_desc

if (cb)

cb(cb_data);//執行回調函數

11.dma_release_channel(chan);



實例源碼:

sunxi_dma_test.c



/*
 * drivers/char/dma_test/sunxi_dma_test.c
 *
 * Copyright(c) 2013-2015 Allwinnertech Co., Ltd.
 *      http://www.allwinnertech.com
 *
 * Author: liugang
 *
 * sunxi dma test driver
 *
 * This program is free software; you can redistribute it and/or modify
 * it under the terms of the GNU General Public License as published by
 * the Free Software Foundation; either version 2 of the License, or
 * (at your option) any later version.
 */

#include "sunxi_dma_test.h"

/* wait queue for waiting dma done */
wait_queue_head_t g_dtc_queue[DTC_MAX];
atomic_t g_adma_done = ATOMIC_INIT(0); /* dma done flag */
//int size_available[] = {SZ_4K, SZ_64K, SZ_256K, SZ_512K, SZ_512K + SZ_64K, SZ_512K + SZ_256K, SZ_1M};
int size_available[] = {SZ_4K, SZ_16K, SZ_32K, SZ_64K, SZ_128K, SZ_256K, SZ_512K};

static void __dma_test_init_waitqueue(void)
{
	u32 i = 0;

	for(i = 0; i < DTC_MAX; i++)
		init_waitqueue_head(&g_dtc_queue[i]);
}

static void __dma_callback(void *dma_async_param)
{
	chan_info *pinfo = (chan_info *)dma_async_param;

	wake_up_interruptible(&pinfo->dma_wq);
	atomic_set(&pinfo->dma_done, 1);
}

buf_group *init_buf(void)
{
	buf_group *pbuf = kmalloc(sizeof(buf_group), GFP_KERNEL);
	int i, buf_cnt = (get_random_int()%BUF_MAX_CNT) + 1;
	int size, index;

	if (!pbuf)
		return NULL;

	for (i = 0; i < buf_cnt; i++) {
		index = get_random_int() % ARRAY_SIZE(size_available);
		size = size_available[index];
printk("%s(%d): buf %d, index %d, size 0x%x\n", __func__, __LINE__, i, index, size);
		pbuf->item[i].src_va = (u32)dma_alloc_coherent(NULL, size, (dma_addr_t *)&pbuf->item[i].src_pa, GFP_KERNEL);
		if (!pbuf->item[i].src_va)
			break;
		pbuf->item[i].dst_va = (u32)dma_alloc_coherent(NULL, size, (dma_addr_t *)&pbuf->item[i].dst_pa, GFP_KERNEL);
		if (!pbuf->item[i].dst_va) {
			dma_free_coherent(NULL, size, (void *)pbuf->item[i].src_va, (dma_addr_t)pbuf->item[i].src_pa);
			break;
		}
		memset((void *)pbuf->item[i].src_va, 0x54, size);
		memset((void *)pbuf->item[i].dst_va, 0xab, size);
		pbuf->item[i].size = size;
	}

	pbuf->cnt = i;
	if(0 == pbuf->cnt)
		return NULL;

printk("%s(%d): buf cnt %d, buffers:\n", __func__, __LINE__, pbuf->cnt);
for (i = 0; i < pbuf->cnt; i++)
printk("        src: va 0x%08x, pa 0x%08x; dst: va 0x%08x, pa 0x%08x\n",
	pbuf->item[i].src_va, pbuf->item[i].src_pa, pbuf->item[i].dst_va, pbuf->item[i].dst_pa);

	return pbuf;
}

void deinit_buf(buf_group *pbuf)
{
	int i;

	if (!pbuf)
		return;

	for (i = 0; i < pbuf->cnt; i++) {
		dma_free_coherent(NULL, pbuf->item[i].size, (void *)pbuf->item[i].src_va, (dma_addr_t)pbuf->item[i].src_pa);
		dma_free_coherent(NULL, pbuf->item[i].size, (void *)pbuf->item[i].dst_va, (dma_addr_t)pbuf->item[i].dst_pa);
	}
	kfree(pbuf);
}

int check_result(buf_group *pbuf)
{
	int i, j;

	if (!pbuf)
		return -EINVAL;

	for (i = 0; i < pbuf->cnt; i++) {
		if(memcmp((void *)pbuf->item[i].src_va, (void *)pbuf->item[i].dst_va, pbuf->item[i].size)) {
			printk("%s(%d) err: buffer %d memcmp failed!\n", __func__, __LINE__, i);

			printk("   src buffer: ");
			for (j = 0; j < 16; j++)
				printk("%d ", *((char *)pbuf->item[i].src_va + j));
			printk("\n");
			printk("   dst buffer: ");
			for (j = 0; j < 16; j++)
				printk("%d ", *((char *)pbuf->item[i].dst_va + j));
			printk("\n");
			return -EIO;
		}
	}
	return 0;
}

int case_memcpy_single_chan(void)
{
	struct sg_table src_sg_table, dst_sg_table;
	struct dma_async_tx_descriptor *tx = NULL;
	struct dma_slave_config config;
	struct dma_chan *chan;
	struct scatterlist *sg;
	buf_group *buffers = NULL;
	long timeout = 5 * HZ;
	chan_info dma_info;
	dma_cap_mask_t mask;
	dma_cookie_t cookie;
	int i, ret = -EINVAL;

	buffers = init_buf();
	if (!buffers) {
		pr_err("%s(%d) err: init_buf failed!\n", __func__, __LINE__);
		return -EBUSY;
	}

	dma_cap_zero(mask);
	dma_cap_set(DMA_SG, mask);
	dma_cap_set(DMA_MEMCPY, mask);
	chan = dma_request_channel(mask , NULL , NULL);
	if (!chan) {
		pr_err("%s(%d) err: dma_request_channel failed!\n", __func__, __LINE__);
		goto out1;
	}

	if (sg_alloc_table(&src_sg_table, buffers->cnt, GFP_KERNEL)) {
		pr_err("%s(%d) err: alloc src sg_table failed!\n", __func__, __LINE__);
		goto out2;
	}
	if (sg_alloc_table(&dst_sg_table, buffers->cnt, GFP_KERNEL)) {
		pr_err("%s(%d) err: alloc dst sg_table failed!\n", __func__, __LINE__);
		goto out3;
	}

	/* assign sg buf */
	sg = src_sg_table.sgl;
	for (i = 0; i < buffers->cnt; i++, sg = sg_next(sg)) {
		sg_set_buf(sg, phys_to_virt(buffers->item[i].src_pa), buffers->item[i].size);
		sg_dma_address(sg) = buffers->item[i].src_pa;
	}
	sg = dst_sg_table.sgl;
	for (i = 0; i < buffers->cnt; i++, sg = sg_next(sg)) {
		sg_set_buf(sg, phys_to_virt(buffers->item[i].dst_pa), buffers->item[i].size);
		sg_dma_address(sg) = buffers->item[i].dst_pa;
	}

	config.direction = DMA_MEM_TO_MEM;
	config.src_addr = 0; /* not used for memcpy */
	config.dst_addr = 0;
	config.src_addr_width = DMA_SLAVE_BUSWIDTH_4_BYTES;
	config.dst_addr_width = DMA_SLAVE_BUSWIDTH_4_BYTES;
	config.src_maxburst = 8;
	config.dst_maxburst = 8;
	config.slave_id = sunxi_slave_id(DRQDST_SDRAM, DRQSRC_SDRAM);
	dmaengine_slave_config(chan , &config);

	tx = chan->device->device_prep_dma_sg(chan, dst_sg_table.sgl, buffers->cnt,
		src_sg_table.sgl, buffers->cnt, DMA_PREP_INTERRUPT | DMA_CTRL_ACK);

	/* set callback */
	dma_info.chan = chan;
	init_waitqueue_head(&dma_info.dma_wq);
	atomic_set(&dma_info.dma_done, 0);
	tx->callback = __dma_callback;
	tx->callback_param = &dma_info;

	/* enqueue */
	cookie = dmaengine_submit(tx);
	/* start dma */
	dma_async_issue_pending(chan);

	/* wait transfer over */
	ret = wait_event_interruptible_timeout(dma_info.dma_wq, atomic_read(&dma_info.dma_done)==1, timeout);
	if (unlikely(-ERESTARTSYS == ret || 0 == ret)) {
		pr_err("%s(%d) err: wait dma done failed!\n", __func__, __LINE__);
		goto out4;
	}

	ret = check_result(buffers);
out4:
	sg_free_table(&src_sg_table);
out3:
	sg_free_table(&dst_sg_table);
out2:
	dma_release_channel(chan);
out1:
	if (buffers)
		deinit_buf(buffers);
	if(ret)
		printk("%s(%d) err: test failed!\n", __func__, __LINE__);
	else
		printk("%s(%d): test success!\n", __func__, __LINE__);
	return ret;
}

int case_memcpy_multi_chan(void)
{
	struct dma_async_tx_descriptor *tx = NULL;
	struct dma_slave_config config;
	chan_info dma_chanl[DMA_MAX_CHAN], *pchan_info;
	int buf_left, cur_trans, start_index;
	int i, ret = -EINVAL, chan_cnt = 0;
	long timeout = 5 * HZ;
	dma_cap_mask_t mask;
	dma_cookie_t cookie;
	buf_group *buffers = NULL;

	buffers = init_buf();
	if (!buffers) {
		pr_err("%s(%d) err: init_buf failed!\n", __func__, __LINE__);
		return -EBUSY;
	}

	/* request channel */
	dma_cap_zero(mask);
	dma_cap_set(DMA_MEMCPY, mask);
	for(i = 0; i < ARRAY_SIZE(dma_chanl); i++, chan_cnt++) {
		if(chan_cnt == buffers->cnt) /* channel enough */
			break;
		pchan_info = &dma_chanl[i];
		pchan_info->chan = dma_request_channel(mask , NULL , NULL);
		if(!pchan_info->chan)
			break;
		init_waitqueue_head(&pchan_info->dma_wq);
		atomic_set(&pchan_info->dma_done, 0);
	}

	buf_left = buffers->cnt;
again:
	start_index = buffers->cnt - buf_left;
	for(i = 0; i < chan_cnt; ) {
		pchan_info = &dma_chanl[i];
		config.direction = DMA_MEM_TO_MEM;
		config.src_addr = 0; /* not used for memcpy */
		config.dst_addr = 0;
		config.src_addr_width = DMA_SLAVE_BUSWIDTH_4_BYTES;
		config.dst_addr_width = DMA_SLAVE_BUSWIDTH_4_BYTES;
		config.src_maxburst = 8;
		config.dst_maxburst = 8;
		config.slave_id = sunxi_slave_id(DRQDST_SDRAM, DRQSRC_SDRAM);
		dmaengine_slave_config(pchan_info->chan, &config);

		tx = pchan_info->chan->device->device_prep_dma_memcpy(pchan_info->chan,
			buffers->item[start_index + i].dst_pa,
			buffers->item[start_index + i].src_pa,
			buffers->item[start_index + i].size,
			DMA_PREP_INTERRUPT | DMA_CTRL_ACK);

		tx->callback = __dma_callback;
		tx->callback_param = pchan_info;

		cookie = dmaengine_submit(tx);

		if(++i == buf_left)
			break;
	}
	cur_trans = i;

	/* start dma */
	for(i = 0; i < cur_trans; i++)
		dma_async_issue_pending(dma_chanl[i].chan);

	for(i = 0; i < cur_trans; i++) {
		ret = wait_event_interruptible_timeout(dma_chanl[i].dma_wq, atomic_read(&dma_chanl[i].dma_done)==1, timeout);
		if(unlikely(-ERESTARTSYS == ret || 0 == ret)) {
			pr_err("%s(%d) err: wait dma done failed!\n", __func__, __LINE__);
			ret = -EIO;
			goto end;
		}
	}

	buf_left -= cur_trans;
	if(buf_left)
		goto again;

	ret = check_result(buffers);
end:
	for(i = 0; i < chan_cnt; i++)
		dma_release_channel(dma_chanl[i].chan);

	if (buffers)
		deinit_buf(buffers);

	if(ret)
		printk("%s(%d) err: test failed!\n", __func__, __LINE__);
	else
		printk("%s(%d): test success!\n", __func__, __LINE__);
	return ret;
}

static int dma_test_main(int id)
{
	u32 uret = 0;

	switch(id) {
	case DTC_MEMCPY_SINGLE_CHAN:
		uret = case_memcpy_single_chan();
		break;
	case DTC_MEMCPY_MULTI_CHAN:
		uret = case_memcpy_multi_chan();
		break;
	default:
		uret = __LINE__;
		break;
	}

	if(0 == uret)
		printk("%s: test success!\n", __func__);
	else
		printk("%s: test failed!\n", __func__);
	return uret;
}

const char *case_name[] = {
	"DTC_MEMCPY_SINGLE_CHAN",
	"DTC_MEMCPY_MULTI_CHAN",
};

ssize_t test_store(struct class *class, struct class_attribute *attr,
			const char *buf, size_t size)
{
	int id = 0;

	if(strict_strtoul(buf, 10, (long unsigned int *)&id)) {
		pr_err("%s: invalid string %s\n", __func__, buf);
		return -EINVAL;
	}
	pr_info("%s: string %s, test case %s\n", __func__, buf, case_name[id]);

	if(0 != dma_test_main(id))
		pr_err("%s: dma_test_main failed! id %d\n", __func__, id);
	else
		pr_info("%s: dma_test_main success! id %d\n", __func__, id);
	return size;
}

ssize_t help_show(struct class *class, struct class_attribute *attr, char *buf)
{
	ssize_t cnt = 0;

	cnt += sprintf(buf + cnt, "usage: echo id > test\n");
	cnt += sprintf(buf + cnt, "     id for case DTC_MEMCPY_SINGLE_CHAN        is %d\n", (int)DTC_MEMCPY_SINGLE_CHAN);
	cnt += sprintf(buf + cnt, "     id for case DTC_MEMCPY_MULTI_CHAN         is %d\n", (int)DTC_MEMCPY_MULTI_CHAN);
	cnt += sprintf(buf + cnt, "case description:\n");
	cnt += sprintf(buf + cnt, "     DTC_MEMCPY_SINGLE_CHAN:        case for single channel\n");
	cnt += sprintf(buf + cnt, "     DTC_MEMCPY_MULTI_CHAN:         case for multi channel\n");
	return cnt;
}

static struct class_attribute dma_test_class_attrs[] = {
	__ATTR(test, 0220, NULL, test_store), /* not 222, for CTS, other group cannot have write permission */
	__ATTR(help, 0444, help_show, NULL),
	__ATTR_NULL,
};

static struct class dma_test_class = {
	.name		= "sunxi_dma_test",
	.owner		= THIS_MODULE,
	.class_attrs	= dma_test_class_attrs,
};

static int __init sw_dma_test_init(void)
{
	int status;

	pr_info("%s enter\n", __func__);

	/* init dma wait queue */
	__dma_test_init_waitqueue();

	status = class_register(&dma_test_class);
	if(status < 0)
		pr_info("%s err, status %d\n", __func__, status);
	else
		pr_info("%s success\n", __func__);
	return 0;
}

static void __exit sw_dma_test_exit(void)
{
	pr_info("sw_dma_test_exit: enter\n");
	class_unregister(&dma_test_class);
}

module_init(sw_dma_test_init);
module_exit(sw_dma_test_exit);
MODULE_LICENSE ("GPL");
MODULE_AUTHOR ("liugang");
MODULE_DESCRIPTION ("sunxi dma test driver");

sunxi_dma_test.h





/*
 * drivers/char/dma_test/sunxi_dma_test.h
 *
 * Copyright(c) 2013-2015 Allwinnertech Co., Ltd.
 *      http://www.allwinnertech.com
 *
 * Author: liugang
 *
 * sunxi dma test driver
 *
 * This program is free software; you can redistribute it and/or modify
 * it under the terms of the GNU General Public License as published by
 * the Free Software Foundation; either version 2 of the License, or
 * (at your option) any later version.
 */

#ifndef __SUNXI_DMA_TEST_H
#define __SUNXI_DMA_TEST_H

#include
#include
#include
#include
#include
#include
#include
#include
#include
#include
#include
#include
#include
#include
#include
#include
#include
#include
#include
#include
#include
#include
#include
#include
#include
#include
#include

#include
#include

enum dma_test_case_e {
	DTC_MEMCPY_SINGLE_CHAN,
	DTC_MEMCPY_MULTI_CHAN,
	DTC_MAX
};

extern wait_queue_head_t g_dtc_queue[];
extern atomic_t g_adma_done;

#define BUF_MAX_CNT 	8
#define DMA_MAX_CHAN    6

typedef struct {
	unsigned int src_va;
	unsigned int src_pa;
	unsigned int dst_va;
	unsigned int dst_pa;
	unsigned int size;
}buf_item;

typedef struct {
	unsigned int cnt;
	buf_item item[BUF_MAX_CNT];
}buf_group;

typedef struct {
	struct dma_chan *chan;      /* dma channel handle */
	wait_queue_head_t dma_wq;   /* wait dma transfer done */
	atomic_t	dma_done;   /* dma done flag, used with dma_wq */
}chan_info;

#endif /* __SUNXI_DMA_TEST_H */



Copyright © Linux教程網 All Rights Reserved
