Muduo網絡庫源碼分析(一) EventLoop事件循環(Poller和Channel)

從這一篇博文起,我們開始剖析Muduo網絡庫的源碼,主要結合《Linux多線程服務端編程》和網上的一些學習資料!

(一)TCP網絡編程的本質:三個半事件

1. 連接的建立,包括服務端接受(accept) 新連接和客戶端成功發起(connect) 連接。TCP 連接一旦建立,客戶端和服務端是平等的,可以各自收發數據。

2. 連接的斷開,包括主動斷開(close 或shutdown) 和被動斷開(read(2) 返回0)。

3. 消息到達,文件描述符可讀。這是最為重要的一個事件,對它的處理方式決定了網絡編程的風格(阻塞還是非阻塞,如何處理分包,應用層的緩沖如何設計等等)。

3.5 消息發送完畢,這算半個。對於低流量的服務,可以不必關心這個事件;另外,這裡“發送完畢”是指將數據寫入操作系統的緩沖區,將由TCP 協議棧負責數據的發送與重傳,不代表對方已經收到數據。

這其中,最主要的便是第三點: 消息到達,文件描述符可讀。下面我們來仔細分析(順便分析消息發送完畢):

\



(1)消息到達,文件可讀:

內核接收-> 網絡庫可讀事件觸發--> 將數據從內核轉至應用緩沖區(並且回調函數OnMessage根據協議判斷是否是完整的數據包,如果不是立即返回)-->如果完整就取出讀走、解包、處理、發送(read decode compute encode write)

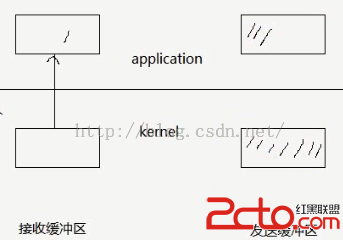

(2)消息發送完畢:

應用緩沖區-->內核緩沖區(可全填)--->觸發發送完成的事件,回調Onwrite。如果內核緩沖區不足以容納數據(高流量的服務),要把數據追加到應用層發送緩沖區中內核數據發送之後,觸發socket可寫事件,應用層-->內核;當全發送至內核時,又會回調Onwrite(可繼續寫)

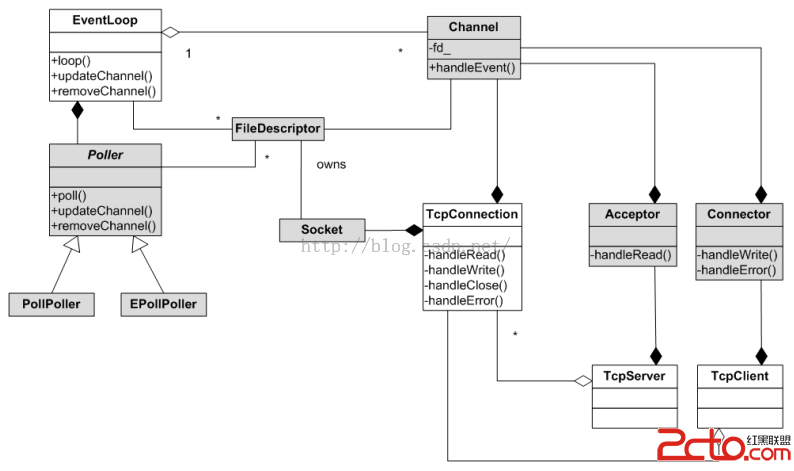

(二)事件循環類圖

\

EventLoop類:



EventLoop是對Reactor模式的封裝,由於Muduo的並發原型是 Multiple reactors + threadpool (one loop per thread + threadpool),所以每個線程最多只能有一個EventLoop對象。EventLoop對象構造的時候,會檢查當前線程是否已經創建了其他EventLoop對象,如果已創建,終止程序(LOG_FATAL),EventLoop類的構造函數會記錄本對象所屬線程(threadld_),創建了EventLoop對象的線程稱為IO線程,其功能是運行事件循環(EventLoop:loop),啥也不干==

下面是簡化版的EventLoop(內部的Poller尚未實現,只是一個框架)

EventLoop.h



#ifndef MUDUO_NET_EVENTLOOP_H
#define MUDUO_NET_EVENTLOOP_H

#include
#include
#include

namespace muduo
{
namespace net
{
/// Reactor, at most one per thread.
/// This is an interface class, so don't expose too much details.
class EventLoop : boost::noncopyable
{
 public:
  EventLoop();
  ~EventLoop();  // force out-line dtor, for scoped_ptr members.
  /// Loops forever.
  /// Must be called in the same thread as creation of the object.
  void loop();
  void assertInLoopThread()
  {
    if (!isInLoopThread())
    {
      abortNotInLoopThread();
    }
  }
  bool isInLoopThread() const { return threadId_ == CurrentThread::tid(); }

  static EventLoop* getEventLoopOfCurrentThread();

 private:
  void abortNotInLoopThread();

  bool looping_; /* atomic */
  const pid_t threadId_;		// 當前對象所屬線程ID
};

}
}
#endif  // MUDUO_NET_EVENTLOOP_H



EventLoop.c



#include
#include
#include
using namespace muduo;
using namespace muduo::net;

namespace
{
// 當前線程EventLoop對象指針
// 線程局部存儲
__thread EventLoop* t_loopInThisThread = 0;
}

EventLoop* EventLoop::getEventLoopOfCurrentThread()
{
  return t_loopInThisThread;
}

EventLoop::EventLoop()
  : looping_(false),
    threadId_(CurrentThread::tid())
{
  LOG_TRACE << "EventLoop created " << this << " in thread " << threadId_;
  // 如果當前線程已經創建了EventLoop對象,終止(LOG_FATAL)
  if (t_loopInThisThread)
  {
    LOG_FATAL << "Another EventLoop " << t_loopInThisThread
              << " exists in this thread " << threadId_;
  }
  else
  {
    t_loopInThisThread = this;
  }
}

EventLoop::~EventLoop()
{
  t_loopInThisThread = NULL;
}

// 事件循環,該函數不能跨線程調用
// 只能在創建該對象的線程中調用
void EventLoop::loop()
{
  assert(!looping_);
  // 斷言當前處於創建該對象的線程中
  assertInLoopThread();
  looping_ = true;
  LOG_TRACE << "EventLoop " << this << " start looping";

  ::poll(NULL, 0, 5*1000);

  LOG_TRACE << "EventLoop " << this << " stop looping";
  looping_ = false;
}

void EventLoop::abortNotInLoopThread()
{
  LOG_FATAL << "EventLoop::abortNotInLoopThread - EventLoop " << this
            << " was created in threadId_ = " << threadId_
            << ", current thread id = " <<  CurrentThread::tid();
}


Poller類:

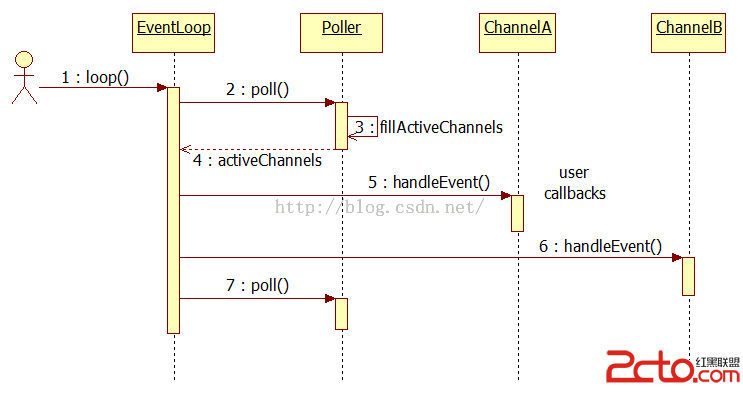

時序圖:

\




Poller是個抽象類,具體可以是EPollPoller(默認) 或者PollPoller,需要去實現(唯一使用面向對象的一個類)

對於PollPoller來說,存在一個map,用來關聯fd和channel的,我們可以根據fd快速找到對應的channel。一個fd對應一個struct pollfd(pollfd.fd),一個fd 對應一個channel*;這個fd 可以是socket, eventfd, timerfd, signalfd。

Poller的作用是更新IO復用中的channel(IO事件),添加、刪除Channel。我們看一下PollPoller的實現:

PollPoller.h



#ifndef MUDUO_NET_POLLER_POLLPOLLER_H
#define MUDUO_NET_POLLER_POLLPOLLER_H

#include
#include
#include

struct pollfd;

namespace muduo
{
namespace net
{

/// IO Multiplexing with poll(2).
class PollPoller : public Poller
{
 public:

  PollPoller(EventLoop* loop);
  virtual ~PollPoller();

  virtual Timestamp poll(int timeoutMs, ChannelList* activeChannels);
  virtual void updateChannel(Channel* channel);
  virtual void removeChannel(Channel* channel);

 private:
  void fillActiveChannels(int numEvents,
                          ChannelList* activeChannels) const;

  typedef std::vector PollFdList;
  typedef std::map ChannelMap;	// key是文件描述符,value是Channel*
  PollFdList pollfds_;
  ChannelMap channels_;
};

}
}
#endif  // MUDUO_NET_POLLER_POLLPOLLER_H



PollPoller.c



#include
#include
#include
#include
#include
#include

using namespace muduo;
using namespace muduo::net;

PollPoller::PollPoller(EventLoop* loop)
  : Poller(loop)
{
}

PollPoller::~PollPoller()
{
}

Timestamp PollPoller::poll(int timeoutMs, ChannelList* activeChannels)
{
  // XXX pollfds_ shouldn't change
  int numEvents = ::poll(&*pollfds_.begin(), pollfds_.size(), timeoutMs);
  Timestamp now(Timestamp::now());
  if (numEvents > 0)
  {
    LOG_TRACE << numEvents << " events happended";
    fillActiveChannels(numEvents, activeChannels);
  }
  else if (numEvents == 0)
  {
    LOG_TRACE << " nothing happended";
  }
  else
  {
    LOG_SYSERR << "PollPoller::poll()";
  }
  return now;
}

void PollPoller::fillActiveChannels(int numEvents,
                                    ChannelList* activeChannels) const
{
  for (PollFdList::const_iterator pfd = pollfds_.begin();
      pfd != pollfds_.end() && numEvents > 0; ++pfd)
  {
    if (pfd->revents > 0)
    {
      --numEvents;
      ChannelMap::const_iterator ch = channels_.find(pfd->fd);
      assert(ch != channels_.end());
      Channel* channel = ch->second;
      assert(channel->fd() == pfd->fd);
      channel->set_revents(pfd->revents);
      // pfd->revents = 0;
      activeChannels->push_back(channel);
    }
  }
}

void PollPoller::updateChannel(Channel* channel)
{
  Poller::assertInLoopThread();
  LOG_TRACE << "fd = " << channel->fd() << " events = " << channel->events();
  if (channel->index() < 0)
  {
	// index < 0說明是一個新的通道
    // a new one, add to pollfds_
    assert(channels_.find(channel->fd()) == channels_.end());
    struct pollfd pfd;
    pfd.fd = channel->fd();
    pfd.events = static_cast(channel->events());
    pfd.revents = 0;
    pollfds_.push_back(pfd);
    int idx = static_cast(pollfds_.size())-1;
    channel->set_index(idx);
    channels_[pfd.fd] = channel;
  }
  else
  {
    // update existing one
    assert(channels_.find(channel->fd()) != channels_.end());
    assert(channels_[channel->fd()] == channel);
    int idx = channel->index();
    assert(0 <= idx && idx < static_cast(pollfds_.size()));
    struct pollfd& pfd = pollfds_[idx];
    assert(pfd.fd == channel->fd() || pfd.fd == -channel->fd()-1);
    pfd.events = static_cast(channel->events());
    pfd.revents = 0;
	// 將一個通道暫時更改為不關注事件,但不從Poller中移除該通道
    if (channel->isNoneEvent())
    {
      // ignore this pollfd
	  // 暫時忽略該文件描述符的事件
	  // 這裡pfd.fd 可以直接設置為-1
      pfd.fd = -channel->fd()-1;	// 這樣子設置是為了removeChannel優化
    }
  }
}

void PollPoller::removeChannel(Channel* channel)
{
  Poller::assertInLoopThread();
  LOG_TRACE << "fd = " << channel->fd();
  assert(channels_.find(channel->fd()) != channels_.end());
  assert(channels_[channel->fd()] == channel);
  assert(channel->isNoneEvent());
  int idx = channel->index();
  assert(0 <= idx && idx < static_cast(pollfds_.size()));
  const struct pollfd& pfd = pollfds_[idx]; (void)pfd;
  assert(pfd.fd == -channel->fd()-1 && pfd.events == channel->events());
  size_t n = channels_.erase(channel->fd());
  assert(n == 1); (void)n;
  if (implicit_cast(idx) == pollfds_.size()-1)
  {
    pollfds_.pop_back();
  }
  else
  {
	// 這裡移除的算法復雜度是O(1),將待刪除元素與最後一個元素交換再pop_back
    int channelAtEnd = pollfds_.back().fd;
    iter_swap(pollfds_.begin()+idx, pollfds_.end()-1);
    if (channelAtEnd < 0)
    {
      channelAtEnd = -channelAtEnd-1;
    }
    channels_[channelAtEnd]->set_index(idx);
    pollfds_.pop_back();
  }
}
代碼中的幾個技巧都在注釋中標出。



Channel類:



Channel是selectable IO channel,負責注冊與響應IO 事件,它不擁有file descriptor。



Channel是Reactor結構中的“事件”,它自始至終都屬於一個EventLoop(一個EventLoop對應多個Channel,處理多個IO),負責一個文件描述符的IO事件,它包含又文件描述符fd_,但實際上它不擁有fd_,不用負責將其關閉。在Channel類中保存這IO事件的類型以及對應的回調函數,當IO事件發生時,最終會調用到Channel類中的回調函數。Channel類一般不單獨使用,它常常包含在其他類中(Acceptor、Connector、EventLoop、TimerQueue、TcpConnection)使用。Channel類有EventLoop的指針 loop_,通過這個指針可以向EventLoop中添加當前Channel事件。事件類型用events_表示,不同事件類型對應不同回調函數。



以下兩個都由Channel注冊:

Acceptor是被動連接的抽象--->關注監聽套接字的可讀事件,回調handleRead。

Connector對主動連接的抽象。

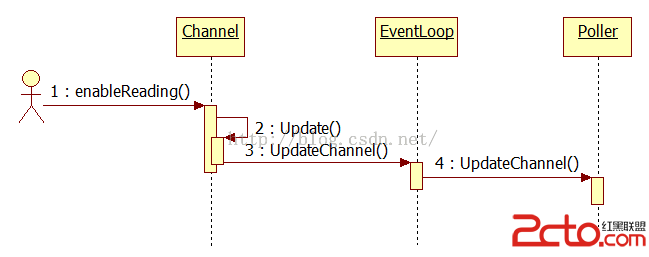

時序圖:

\

Channel.h



#ifndef MUDUO_NET_CHANNEL_H
#define MUDUO_NET_CHANNEL_H

#include
#include
#include
#include
#include

namespace muduo
{
namespace net
{

class EventLoop;

/// A selectable I/O channel.
/// This class doesn't own the file descriptor.
/// The file descriptor could be a socket,
/// an eventfd, a timerfd, or a signalfd
class Channel : boost::noncopyable
{
 public:
  typedef boost::function EventCallback;
  typedef boost::function ReadEventCallback;

  Channel(EventLoop* loop, int fd);
  ~Channel();

  void handleEvent(Timestamp receiveTime);
  void setReadCallback(const ReadEventCallback& cb)
  { readCallback_ = cb; }
  void setWriteCallback(const EventCallback& cb)
  { writeCallback_ = cb; }
  void setCloseCallback(const EventCallback& cb)
  { closeCallback_ = cb; }
  void setErrorCallback(const EventCallback& cb)
  { errorCallback_ = cb; }

  /// Tie this channel to the owner object managed by shared_ptr,
  /// prevent the owner object being destroyed in handleEvent.
  void tie(const boost::shared_ptr&);

  int fd() const { return fd_; }
  int events() const { return events_; }
  void set_revents(int revt) { revents_ = revt; } // used by pollers
  // int revents() const { return revents_; }
  bool isNoneEvent() const { return events_ == kNoneEvent; }

  void enableReading() { events_ |= kReadEvent; update(); }
  // void disableReading() { events_ &= ~kReadEvent; update(); }
  void enableWriting() { events_ |= kWriteEvent; update(); }
  void disableWriting() { events_ &= ~kWriteEvent; update(); }
  void disableAll() { events_ = kNoneEvent; update(); }
  bool isWriting() const { return events_ & kWriteEvent; }

  // for Poller
  int index() { return index_; }
  void set_index(int idx) { index_ = idx; }

  // for debug
  string reventsToString() const;

  void doNotLogHup() { logHup_ = false; }

  EventLoop* ownerLoop() { return loop_; }
  void remove();

 private:
  void update();
  void handleEventWithGuard(Timestamp receiveTime);

  static const int kNoneEvent;
  static const int kReadEvent;
  static const int kWriteEvent;

  EventLoop* loop_;			// 所屬EventLoop
  const int  fd_;			// 文件描述符,但不負責關閉該文件描述符
  int        events_;		// 關注的事件
  int        revents_;		// poll/epoll返回的事件
  int        index_;		// used by Poller.表示在poll的事件數組中的序號
  bool       logHup_;		// for POLLHUP

  boost::weak_ptr tie_;
  bool tied_;
  bool eventHandling_;		// 是否處於處理事件中
  ReadEventCallback readCallback_;
  EventCallback writeCallback_;
  EventCallback closeCallback_;
  EventCallback errorCallback_;
};

}
}
#endif  // MUDUO_NET_CHANNEL_H
Channel.c





#include
#include
#include
#include
#include

using namespace muduo;
using namespace muduo::net;

const int Channel::kNoneEvent = 0;
const int Channel::kReadEvent = POLLIN | POLLPRI;
const int Channel::kWriteEvent = POLLOUT;

Channel::Channel(EventLoop* loop, int fd__)
  : loop_(loop),
    fd_(fd__),
    events_(0),
    revents_(0),
    index_(-1),
    logHup_(true),
    tied_(false),
    eventHandling_(false)
{
}

Channel::~Channel()
{
  assert(!eventHandling_);
}

void Channel::tie(const boost::shared_ptr& obj)
{
  tie_ = obj;
  tied_ = true;
}

void Channel::update()
{
  loop_->updateChannel(this);
}

// 調用這個函數之前確保調用disableAll
void Channel::remove()
{
  assert(isNoneEvent());
  loop_->removeChannel(this);
}

void Channel::handleEvent(Timestamp receiveTime)
{
  boost::shared_ptr guard;
  if (tied_)
  {
    guard = tie_.lock();
    if (guard)
    {
      handleEventWithGuard(receiveTime);
    }
  }
  else
  {
    handleEventWithGuard(receiveTime);
  }
}

void Channel::handleEventWithGuard(Timestamp receiveTime)
{
  eventHandling_ = true;
  if ((revents_ & POLLHUP) && !(revents_ & POLLIN))
  {
    if (logHup_)
    {
      LOG_WARN << "Channel::handle_event() POLLHUP";
    }
    if (closeCallback_) closeCallback_();
  }

  if (revents_ & POLLNVAL)
  {
    LOG_WARN << "Channel::handle_event() POLLNVAL";
  }

  if (revents_ & (POLLERR | POLLNVAL))
  {
    if (errorCallback_) errorCallback_();
  }
  if (revents_ & (POLLIN | POLLPRI | POLLRDHUP))
  {
    if (readCallback_) readCallback_(receiveTime);
  }
  if (revents_ & POLLOUT)
  {
    if (writeCallback_) writeCallback_();
  }
  eventHandling_ = false;
}

string Channel::reventsToString() const
{
  std::ostringstream oss;
  oss << fd_ << ": ";
  if (revents_ & POLLIN)
    oss << "IN ";
  if (revents_ & POLLPRI)
    oss << "PRI ";
  if (revents_ & POLLOUT)
    oss << "OUT ";
  if (revents_ & POLLHUP)
    oss << "HUP ";
  if (revents_ & POLLRDHUP)
    oss << "RDHUP ";
  if (revents_ & POLLERR)
    oss << "ERR ";
  if (revents_ & POLLNVAL)
    oss << "NVAL ";

  return oss.str().c_str();
}
這三個類之間的關系不難理解,其實本質就是一個Poll/Epoll,只不過進行了更高的抽象後劃分出來的這些類,重點理解博客開頭的那張類圖即可。

參考:

《Muduo使用手冊》

《Linux多線程服務端編程》

Copyright © Linux教程網 All Rights Reserved
