Keepalived雙主模型中vrrp_script中的權重改變故障排查

故障重現

keepalived配置如下

# vi /etc/keepalived/keepalived.conf
! Configuration File for keepalived
global_defs {
   notification_email {
         root@localhost
   }
   notification_email_from [email protected]
   smtp_connect_timeout 3
   smtp_server 127.0.0.1
   router_id LVS_DEVEL
}
vrrp_script chk_maintaince_down {
   script "[[ -f /etc/keepalived/down ]] && exit 1 || exit 0"
   interval 1
   weight 2
}
vrrp_script chk_haproxy {
    script "killall -0 haproxy"
    interval 1
    weight 2
}
vrrp_instance VI_1 {
    interface eth0
    state MASTER
    priority 100
    virtual_router_id 125
    garp_master_delay 1
    authentication {
        auth_type PASS
        auth_pass 1e3459f77aba4ded
    }
    track_interface {
       eth0
    }
    virtual_ipaddress {
        172.16.25.10/16 dev eth0 label eth0:0
    }
    track_script {
        chk_haproxy
        chk_maintaince_down
    }
    notify_master "/etc/keepalived/notify.sh master 172.16.25.10"
    notify_backup "/etc/keepalived/notify.sh backup 172.16.25.10"
    notify_fault "/etc/keepalived/notify.sh fault 172.16.25.10"
}
vrrp_instance VI_2 {
    interface eth0
    state BACKUP
    priority 99
    virtual_router_id 126
    garp_master_delay 1
    authentication {
        auth_type PASS
        auth_pass 7615c4b7f518cede
    }
    track_interface {
       eth0
    }
    virtual_ipaddress {
        172.16.25.11/16 dev eth0 label eth0:1
    }
    track_script {
        chk_haproxy
        chk_maintaince_down
    }
    notify_master "/etc/keepalived/notify.sh master 172.16.25.11"
    notify_backup "/etc/keepalived/notify.sh backup 172.16.25.11"
    notify_fault "/etc/keepalived/notify.sh fault 172.16.25.11"
}
# vi /etc/keepalived/notify.sh
#!/bin/bash
# Author: Jason.Yu <[email protected]>
# description: An example of notify script
#
contact='root@localhost'
notify() {
    mailsubject="`hostname` to be $1: $2 floating"
    mailbody="`date '+%F %H:%M:%S'`: vrrp transition, `hostname` changed to be $1"
    echo $mailbody | mail -s "$mailsubject" $contact
}
case "$1" in
    master)
        notify master $2
        /etc/rc.d/init.d/haproxy start
        exit 0
    ;;
    backup)
        notify backup $2
        /etc/rc.d/init.d/haproxy stop
        exit 0
    ;;
    fault)
        notify fault $2
        /etc/rc.d/init.d/haproxy stop
        exit 0
    ;;
    *)
        echo 'Usage: `basename $0` {master|backup|fault}'
        exit 1
    ;;
esac

更多精彩內容:http://www.bianceng.cn/OS/Linux/

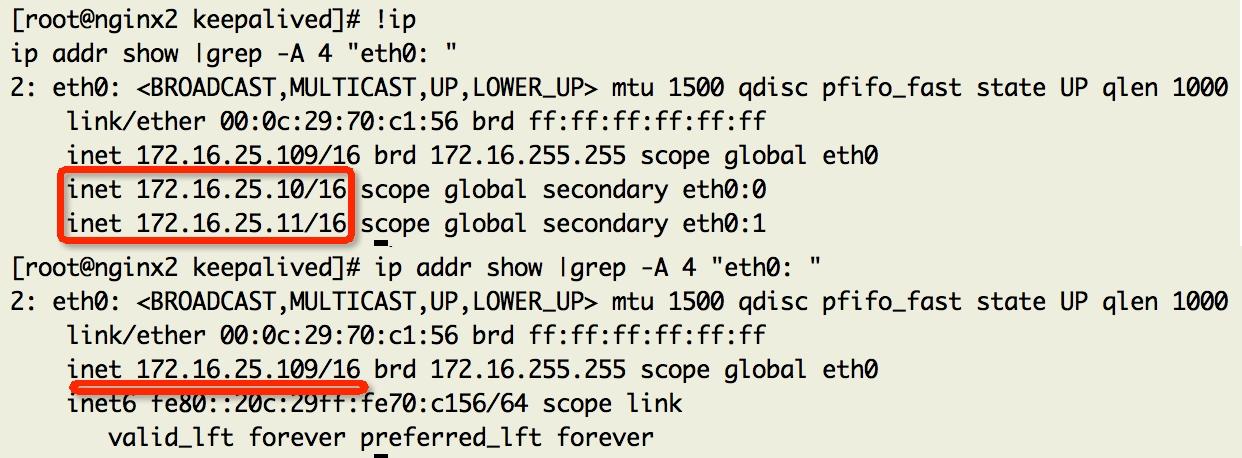

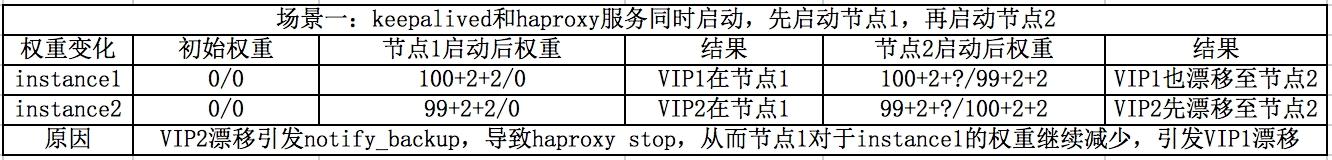

引發的故障1:keepalived宕機恢復後VIP集體漂移故障

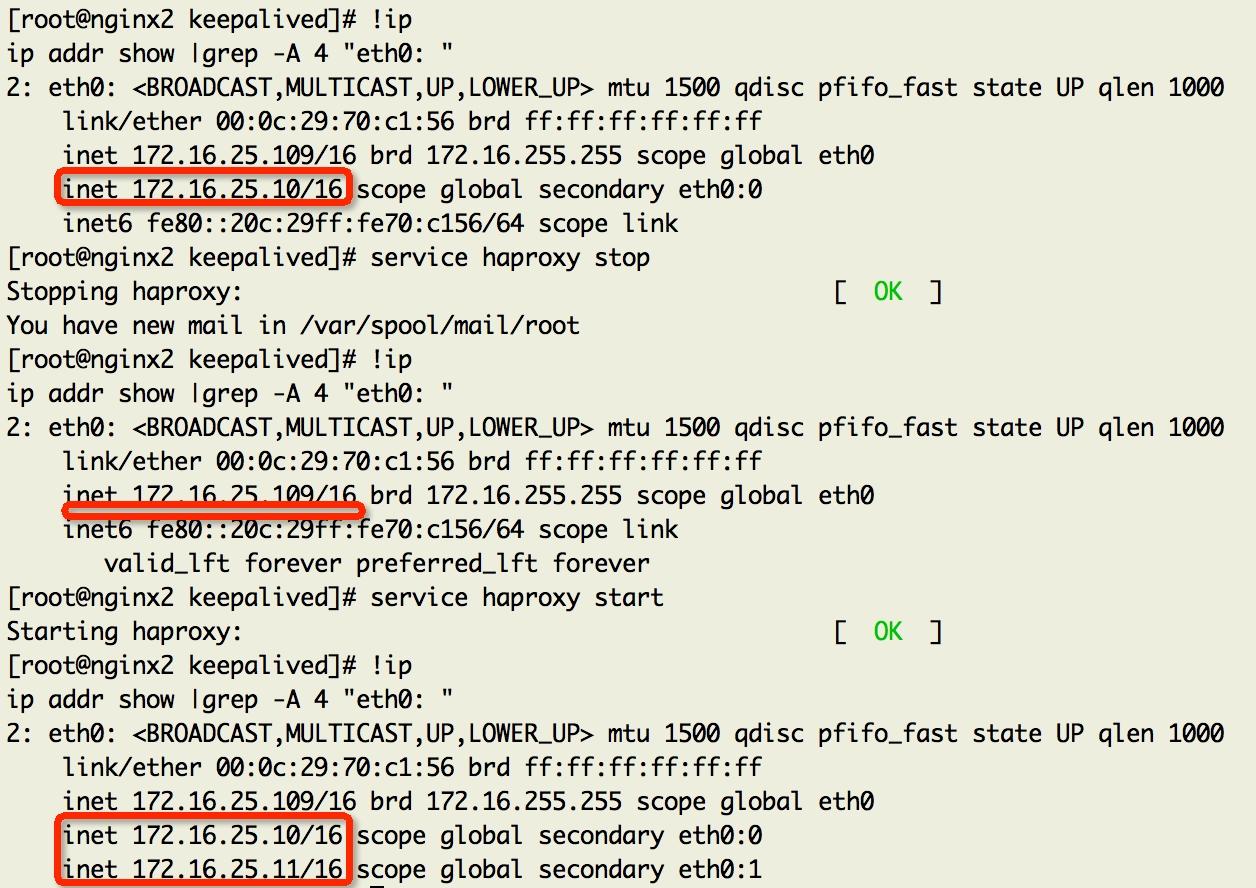

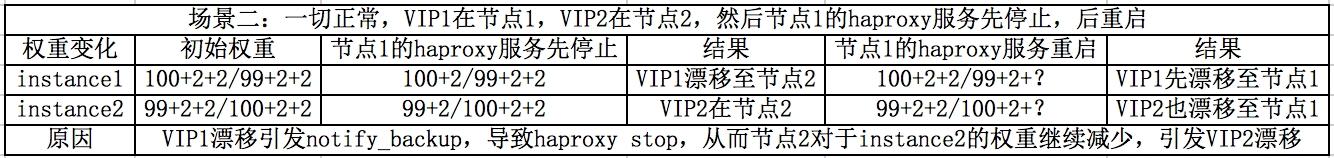

引發的故障2:haproxy服務停止後重啟VIP集體漂移故障

原因

每次主備狀態切換時,會引發notify_backup,而在notify.sh腳本中backup部分會執行/etc/rc.d/init.d/haproxy stop,導致權重在2個節點上都改變一次,從而單一節點上對於所有instance的權重都處於最大或者最小,故VIP集體漂移也就不奇怪了;

解決方法

修改notify.sh腳本,在處理backup部分,只發送通知郵件,而無需刻意停止haproxy服務;

# vi /etc/keepalived/notify.sh
#!/bin/bash
# Author: Jason.Yu <[email protected]>
# description: An example of notify script
#
contact='root@localhost'
notify() {
    mailsubject="`hostname` to be $1: $2 floating"
    mailbody="`date '+%F %H:%M:%S'`: vrrp transition, `hostname` changed to be $1"
    echo $mailbody | mail -s "$mailsubject" $contact
}
case "$1" in
    master)
        notify master $2
        /etc/rc.d/init.d/haproxy start
        exit 0
    ;;
    backup)
        notify backup $2
       # /etc/rc.d/init.d/haproxy stop # 注釋掉或刪除此行
        exit 0
    ;;
    fault)
        notify fault $2
        # /etc/rc.d/init.d/haproxy stop # 同上
        exit 0
    ;;
    *)
        echo 'Usage: `basename $0` {master|backup|fault}'
        exit 1
    ;;
esac

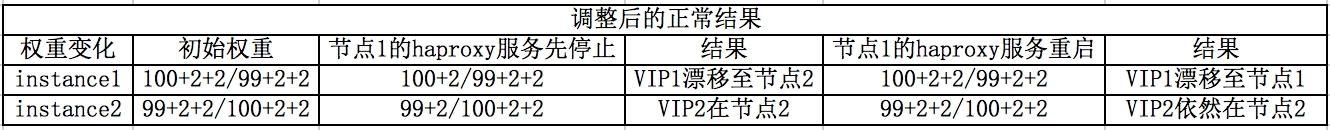

調整後的正常權重改變流程

vrrp_script中節點權重改變算法

vrrp_script 裡的script返回值為0時認為檢測成功,其它值都會當成檢測失敗;

weight 為正時,腳本檢測成功時此weight會加到priority上,檢測失敗時不加;

主失敗:

主 priority < 從 priority + weight 時會切換。

主成功:

主 priority + weight > 從 priority + weight 時,主依然為主

weight 為負時,腳本檢測成功時此weight不影響priority,檢測失敗時priority – abs(weight)

主失敗:

主 priority – abs(weight) < 從priority 時會切換主從

主成功:

主 priority > 從priority 主依然為主

本文出自 “小小忍者” 博客,請務必保留此出處http://xxrenzhe.blog.51cto.com/4036116/1405571
