淺談硬實時Linux(RT-Preempt Patch)在PC上的編譯、使用和測試

Vanilla kernel的問題

Linux  kernel在spinlock、irq上下文方面無法搶占,因此高優先級任務被喚醒到得以執行的時間並不能完全確定。同時,Linux  kernel本身也不處理優先級反轉。RT-Preempt  Patch是在Linux社區kernel的基礎上,加上相關的補丁,以使得Linux滿足硬實時的需求。本文描述了該patch在PC上的實踐。我們的 測試環境為Ubuntu 10.10,默認情況下使用Ubuntu 10.10自帶的kernel:

barry@barry-VirtualBox:/lib/modules$ uname -a
2.6.35-32-generic #67-Ubuntu SMP Mon Mar 5 19:35:26 UTC 2012 i686 GNU/Linux

在Ubuntu 10.10,apt-get install  rt-tests安裝rt測試工具集,運行其中的cyclictest測試工具,默認創建5個SCHED_FIFO策略的realtime線程,優先級 76-80,運行周期是1000,1500,2000,2500,3000微秒:

barry@barry-VirtualBox:~/development/panda/android$ sudo cyclictest -p 80 -t5 -n
[sudo] password for barry:
policy: fifo: loadavg: 9.22 8.57 6.75 11/374 21385

T: 0 (20606) P:80 I:1000 C:  18973 Min:     26 Act:   76 Avg:  428 Max:   12637
T: 1 (20607) P:79 I:1500 C:  12648 Min:     31 Act:   68 Avg:  447 Max:   10320
T: 2 (20608) P:78 I:2000 C:   9494 Min:     28 Act:  151 Avg:  383 Max:    9481
T: 3 (20609) P:77 I:2500 C:   7589 Min:     29 Act:  889 Avg:  393 Max:   12670
T: 4 (20610) P:76 I:3000 C:   6325 Min:     37 Act:  167 Avg:  553 Max:   13673

由此可見在標准Linux內,rt線程投入運行的jitter非常不穩定,最小值在26-37微秒,平均值為68-889微秒,而最大值則分布在9481-13673微秒之間。

我們還是運行這個測試,但是在運行這個測試的過程中引入更多干擾,如mount /dev/sdb1 ~/development,則結果變為:

barry@barry-VirtualBox:~$ sudo cyclictest -p 80 -t5 -n
policy: fifo: loadavg: 0.14 0.29 0.13 2/308 1908

T: 0 ( 1874) P:80 I:1000 C:  28521 Min:      0 Act:  440 Avg: 2095 Max:  331482
T: 1 ( 1875) P:79 I:1500 C:  19014 Min:      2 Act:  988 Avg: 2099 Max:  330503
T: 2 ( 1876) P:78 I:2000 C:  14261 Min:      7 Act:  534 Avg: 2096 Max:  329989
T: 3 ( 1877) P:77 I:2500 C:  11409 Min:      4 Act:  554 Avg: 2073 Max:  328490
T: 4 ( 1878) P:76 I:3000 C:   9507 Min:     12 Act:  100 Avg: 2081 Max:  328991

mount過程中引入的irq、softirq和spinlock導致最大jitter明顯地加大甚至達到了331482us,充分顯示出了標准Linux內核中RT線程投入運行時間的不可預期性(硬實時要求意味著可預期)。

如果我們編譯一份kernel,選擇的是“Voluntary Kernel Preemption (Desktop)“,這類似於2.4不支持kernel搶占的情況,我們運行同樣的case,時間的不確定性大地幾乎讓我們無法接受:

barry@barry-VirtualBox:~$ sudo /usr/local/bin/cyclictest -p 80 -t5 -n
# /dev/cpu_dma_latency set to 0us
policy: fifo: loadavg: 0.23 0.30 0.15 3/247 5086

T: 0 ( 5082) P:80 I:1000 C:   5637 Min:     60 Act:15108679 Avg:11195196 Max:15108679
T: 1 ( 5083) P:80 I:1500 C:   5723 Min:     48 Act:12364955 Avg:6389691 Max:12364955
T: 2 ( 5084) P:80 I:2000 C:   4821 Min:     32 Act:11119979 Avg:8061814 Max:11661123
T: 3 ( 5085) P:80 I:2500 C:   3909 Min:     27 Act:11176854 Avg:4563549 Max:11176854
T: 4 ( 5086) P:80 I:3000 C:   3598 Min:     37 Act:9951432 Avg:8761137 Max:116026155

RT-Preempt Patch使能

RT-Preempt Patch對Linux kernel的主要改造包括:

Making in-kernel locking-primitives (using spinlocks) preemptible though reimplementation with rtmutexes:

Critical  sections protected by i.e. spinlock_t and rwlock_t are now preemptible.  The creation of non-preemptible sections (in kernel) is still possible  with raw_spinlock_t (same APIs like spinlock_t)

Implementing  priority inheritance for in-kernel spinlocks and semaphores. For more  information on priority inversion and priority inheritance please  consultIntroduction to Priority Inversion

Converting  interrupt handlers into preemptible kernel threads: The RT-Preempt  patch treats soft interrupt handlers in kernel thread context, which is  represented by a task_struct like a common userspace process. However it  is also possible to register an IRQ in kernel context.

Converting  the old Linux timer API into separate infrastructures for high  resolution kernel timers plus one for timeouts, leading to userspace  POSIX timers with high resolution.

在本試驗中,我們取的帶RT- Preempt Patch的kernel  tree是git://git.kernel.org/pub/scm/linux/kernel/git/rt/linux-stable-  rt.git,使用其v3.4-rt-rebase branch,編譯kernel時選中了"Fully Preemptible  Kernel"搶占模型:

───────────────────────── Preemption Model ─────────────────────────┐

│ │          ( ) No Forced Preemption (Server)
│ │          ( ) Voluntary Kernel Preemption (Desktop)
│ │          ( ) Preemptible Kernel (Low-Latency Desktop)
│ │          ( ) Preemptible Kernel (Basic RT)
│ │          (X) Fully Preemptible Kernel (RT)

另外,kernel中需支持tickless和高精度timer:

┌───────────────────Processor type and features ─────────────────────────┐
│  │                                      [*] Tickless System (Dynamic  Ticks)
│ │                                      [*] High Resolution Timer Support

make  modules_install、make install、mkintramfs後,我們得到一個可以在Ubuntu中啟動的RT  kernel。具體編譯方法可詳見http://www.linuxidc.com/Linux/2012-01/50749.htm,根據該文修改版本 號等信息即可,我們運行的命令包括:

安裝模塊

barry@barry-VirtualBox:~/development/linux-2.6$ sudo make modules_install
....
  INSTALL /lib/firmware/whiteheat_loader.fw
  INSTALL /lib/firmware/whiteheat.fw
  INSTALL /lib/firmware/keyspan_pda/keyspan_pda.fw
  INSTALL /lib/firmware/keyspan_pda/xircom_pgs.fw
  INSTALL /lib/firmware/cpia2/stv0672_vp4.bin
  INSTALL /lib/firmware/yam/1200.bin
  INSTALL /lib/firmware/yam/9600.bin
  DEPMOD  3.4.11-rt19

安裝kernel

barry@barry-VirtualBox:~/development/linux-2.6$ sudo make install
sh /home/barry/development/linux-2.6/arch/x86/boot/install.sh 3.4.11-rt19 arch/x86/boot/bzImage \
System.map "/boot"

制作initrd

barry@barry-VirtualBox:~/development/linux-2.6$ sudo mkinitramfs 3.4.11-rt19 -o /boot/initrd.img-3.4.11-rt19

修改grub配置

在grub.conf中增加新的啟動entry,仿照現有的menuentry,增加一個新的,把其中的相關版本號都變更為3.4.11-rt19,我們的修改如下:

 menuentry 'Ubuntu, with Linux 3.4.11-rt19' --class ubuntu --class gnu-linux --class gnu --class os {
    recordfail
    insmod part_msdos
    insmod ext2
    set root='(hd0,msdos1)'
    search --no-floppy --fs-uuid --set a0db5cf0-6ce3-404f-9808-88ce18f0177a
    linux    /boot/vmlinuz-3.4.11-rt19 root=UUID=a0db5cf0-6ce3-404f-9808-88ce18f0177a ro   quiet splash
    initrd    /boot/initrd.img-3.4.11-rt19
}

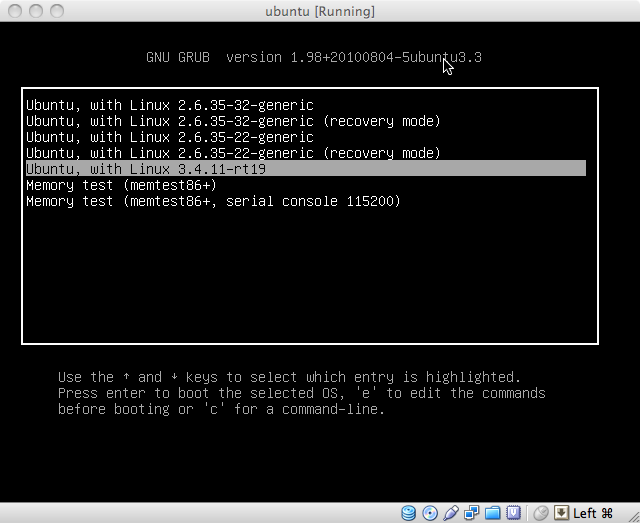

開機時選擇3.4.11-rt19啟動:

RT-Preempt Patch試用

運行同樣的測試cyclictest benchmark工具,結果迥異:

barry@barry-VirtualBox:~$ sudo cyclictest -p 80 -t5 -n
WARNING: Most functions require kernel 2.6
policy: fifo: loadavg: 0.71 0.42 0.17 1/289 1926

T: 0 ( 1921) P:80 I:1000 C:   7294 Min:      7 Act:   89 Avg:  197 Max:    3177
T: 1 ( 1922) P:79 I:1500 C:   4863 Min:     10 Act:   85 Avg:  186 Max:    2681
T: 2 ( 1923) P:78 I:2000 C:   3647 Min:     15 Act:   93 Avg:  160 Max:    2504
T: 3 ( 1924) P:77 I:2500 C:   2918 Min:     23 Act:   67 Avg:  171 Max:    2114
T: 4 ( 1925) P:76 I:3000 C:   2432 Min:     19 Act:  134 Avg:  339 Max:    3129

我們還是運行這個測試,但是在運行這個測試的過程中引入更多干擾,如mount /dev/sdb1 ~/development,則結果變為:

barry@barry-VirtualBox:~$ sudo cyclictest -p 80 -t5 -n
# /dev/cpu_dma_latency set to 0us
policy: fifo: loadavg: 0.11 0.12 0.13 1/263 2860

T: 0 ( 2843) P:80 I:1000 C:  28135 Min:      5 Act:  198 Avg:  200 Max:    7387
T: 1 ( 2844) P:80 I:1500 C:  18756 Min:     22 Act:  169 Avg:  188 Max:    6875
T: 2 ( 2845) P:80 I:2000 C:  14067 Min:      7 Act:   91 Avg:  149 Max:    7288
T: 3 ( 2846) P:80 I:2500 C:  11254 Min:     19 Act:  131 Avg:  155 Max:    6287
T: 4 ( 2847) P:80 I:3000 C:   9378 Min:     25 Act:   58 Avg:  172 Max:    6121

時間在可預期的范圍內,沒有出現標准kernel裡面jitter達到331482的情況。需要說明的是,這個jitter大到超過了我們的預期,達到了10ms量級,相信是受到了我們的測試都是在Virtualbox虛擬機進行的影響。按照其他文檔顯示,這個jitter應該在數十us左右。

我們在這個kernel裡面運行ps aux命令,可以看出線程化了的irq:

USER       PID %CPU %MEM    VSZ   RSS TTY      STAT START   TIME COMMAND
root         1  0.8  0.1   2880  1788 ?        Ss   18:39   0:03 init
root         2  0.0  0.0      0     0 ?        S    18:39   0:00 kthreadd
...

root        45  0.0  0.0      0     0 ?        S    18:39   0:00 irq/14-ata_piix
root        46  0.0  0.0      0     0 ?        S    18:39   0:00 irq/15-ata_piix
root        50  0.0  0.0      0     0 ?        S    18:39   0:00 irq/19-ehci_hcd
root        51  0.0  0.0      0     0 ?        S    18:39   0:00 irq/22-ohci_hcd
root        55  0.0  0.0      0     0 ?        S    18:39   0:00 irq/12-i8042
root        56  0.0  0.0      0     0 ?        S    18:39   0:00 irq/1-i8042
root        57  0.0  0.0      0     0 ?        S    18:39   0:00 irq/8-rtc0
root       863  0.0  0.0      0     0 ?        S    18:39   0:00 irq/19-eth0
root       864  0.0  0.0      0     0 ?        S    18:39   0:00 irq/16-eth1
root      1002  0.5  0.0      0     0 ?        S    18:39   0:01 irq/21-snd_inte
...

在其中編寫一個RT 線程的應用程序,通常需要如下步驟:

Setting a real time scheduling policy and priority.

Locking memory so that page faults caused by virtual memory will not undermine deterministic behavior

Pre-faulting the stack, so that a future stack fault will not undermine deterministic behavior

例 子test_rt.c,其中的mlockall是為了防止進程的虛擬地址空間對應的物理頁面被swap出去,而stack_prefault()則故意提 前導致stack往下增長8KB,因此其後的函數調用和局部變量的使用將不再導致棧增長(依賴於page fault和內存申請):

#include <stdlib.h>
#include <stdio.h>
#include <time.h>
#include <sched.h>
#include <sys/mman.h>
#include <string.h>

#define MY_PRIORITY (49) /* we use 49 as the PRREMPT_RT use 50
                            as the priority of kernel tasklets
                            and interrupt handler by default */

#define MAX_SAFE_STACK (8*1024) /* The maximum stack size which is
                                   guaranteed safe to access without
                                   faulting */

#define NSEC_PER_SEC    (1000000000) /* The number of nsecs per sec. */

void stack_prefault(void) {

        unsigned char dummy[MAX_SAFE_STACK];

        memset(dummy, 0, MAX_SAFE_STACK);
        return;
}

int main(int argc, char* argv[])
{
        struct timespec t;
        struct sched_param param;
        int interval = 50000; /* 50us*/

        /* Declare ourself as a real time task */

        param.sched_priority = MY_PRIORITY;
        if(sched_setscheduler(0, SCHED_FIFO, ¶m) == -1) {
                perror("sched_setscheduler failed");
                exit(-1);
        }

        /* Lock memory */

        if(mlockall(MCL_CURRENT|MCL_FUTURE) == -1) {
                perror("mlockall failed");
                exit(-2);
        }

        /* Pre-fault our stack */

        stack_prefault();

        clock_gettime(CLOCK_MONOTONIC ,&t);
        /* start after one second */
        t.tv_sec++;

        while(1) {
                /* wait until next shot */
                clock_nanosleep(CLOCK_MONOTONIC, TIMER_ABSTIME, &t, NULL);

                /* do the stuff */

                /* calculate next shot */
                t.tv_nsec += interval;

                while (t.tv_nsec >= NSEC_PER_SEC) {
                       t.tv_nsec -= NSEC_PER_SEC;
                        t.tv_sec++;
                }
   }
}

編譯之:gcc -o test_rt test_rt.c -lrt。本節就到這裡,後續我們會有一系列博文來描述RT-Preempt Patch對kernel的主要改動,以及其工作原理。

本文出自 “宋寶華的博客” 博客,請務必保留此出處http://21cnbao.blog.51cto.com/109393/1011931
