linux系統創建主分區、邏輯分區 、設置ext系列分區的參數以及檢測分區的方法

linux對不同的磁盤設備的設備文件命名如下:

        IDE: /dev/hd[a-z]
            對IDE分區的命名為/dev/hda1    /dev/hda2 …..
        SCSI, SATA, SAS, USB: /dev/sd[a-z]
            對分區的命令為/dev/sda1  /dev/sda2 …….
        主分區最多可有4個。若分區大於4個,可使用3個主分區加一個擴展分區的方式,再通過在擴展分區上劃分多個邏輯分區。
        常見的文件格式有ext2、ext3、ext4、vfat(兼容windows的fat32)、xfs、btrfs、jfs等。

查看linux的磁盤分區可使用fdis(分區管理命令)

    fdisk /dev/sda (非IDE硬盤)
        m:獲取幫助
        p:顯示分區信息
        q:不保存退出
        n:新建分區
        d:刪除分區
        q:保存退出
         l:顯示分區類型的ID
         t:改變分區類型的ID

[root@localhost ~]# fdisk /dev/sda

Welcome to fdisk (util-linux 2.23.2).
Changes will remain in memory only, until you decide to write them.
Be careful before using the write command.
Command (m for help): p
Disk /dev/sda: 16.1 GB, 16106127360 bytes, 31457280 sectors
Units = sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk label type: dos
Disk identifier: 0x000a72d4
   Device Boot      Start         End      Blocks   Id  System
/dev/sda1   *        2048     1026047      512000   83  Linux
/dev/sda2         1026048    20971519     9972736   8e  Linux LVM

說明:

    1、Disk /dev/sda: 16.1 GB 硬盤的大小是16GB,16106127360 個字節,31457280個扇區。
    2、下半部信息說明
        Device 是分區名稱
        Boot 是否是啟動分區
        Start 起始的扇區
        End 結束的扇區   \\  /dev/sda2結束的扇區是20971519,而硬盤總共有31457280,說明還有硬盤空間沒有被用於創建分區。
        Blocks以1KB為單位,顯示分區的空間;
        ld 為分區類型的ID號
        System 為分區類型

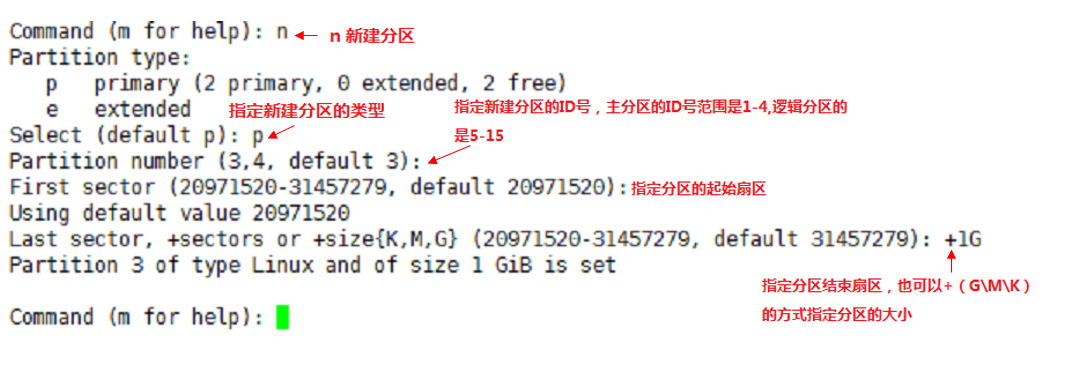

創建分區:(下圖中指定起始扇區與/dev/sda2的結束扇區能對接上)


    創建邏輯分區

Command (m for help): n

Partition type:

   p   primary (3 primary, 0 extended, 1 free)

   e   extended

Select (default e): e   \\指定新建擴展分區

Selected partition 4

First sector (23068672-31457279, default 23068672):

Using default value 23068672

Last sector, +sectors or +size{K,M,G} (23068672-31457279, default 31457279): +1G  \\指定擴展分區的大小

Partition 4 of type Extended and of size 1 GiB is set

Command (m for help): n

All primary partitions are in use

Adding logical partition 5  \\ ID號1-4已經用完,系統直接使用邏輯分區ID的范圍5-15

First sector (23070720-25165823, default 23070720):

Using default value 23070720

Last sector, +sectors or +size{K,M,G} (23070720-25165823, default 25165823): 24000000  \\這裡的結束扇區25165823-23070720=2095103*512/1024/1024=1022.99MB,即1GB,與指定的擴展分區大小相同

Partition 5 of type Linux and of size 453.8 MiB is set \\新建邏輯分區的大小是453.8MB

Command (m for help): n

All primary partitions are in use

Adding logical partition 6

First sector (24002049-25165823, default 24002560):

Using default value 24002560

Last sector, +sectors or +size{K,M,G} (24002560-25165823, default 25165823):  \\這裡的結束扇區ID與上述的相同

Using default value 25165823

Partition 6 of type Linux and of size 568 MiB is set

Command (m for help): p

Disk /dev/sda: 16.1 GB, 16106127360 bytes, 31457280 sectors

Units = sectors of 1 * 512 = 512 bytes

Sector size (logical/physical): 512 bytes / 512 bytes

I/O size (minimum/optimal): 512 bytes / 512 bytes

Disk label type: dos

Disk identifier: 0x000a72d4

   Device Boot      Start         End      Blocks   Id  System

/dev/sda1   *        2048     1026047      512000   83  Linux

/dev/sda2         1026048    20971519     9972736   8e  Linux LVM

/dev/sda3        20971520    23068671     1048576   83  Linux

/dev/sda4        23068672    25165823     1048576    5  Extended

/dev/sda5        23070720    24000000      464640+  83  Linux

/dev/sda6        24002560    25165823      581632   83  Linux  \\新建的邏輯分區

Command (m for help): w \\保存退出

 檢查linux是否已經識別出新的分區查看/rroc/paritions文件

[root@localhost ~]# cat /proc/partitions

major minor  #blocks  name

   8        0   15728640 sda

   8        1     512000 sda1

   8        2    9972736 sda2  \\新創建的/dev/sda3-6沒有還沒有識別出來

  11        0    4228096 sr0

 253        0    8880128 dm-0

 253        1    1048576 dm-1

強制讓內核更新分區

[root@localhost ~]# partx -u /dev/sda

[root@localhost ~]# cat /proc/partitions

major minor  #blocks  name

   8        0   15728640 sda

   8        1     512000 sda1

   8        2    9972736 sda2

   8        3    1048576 sda3

   8        4          1 sda4

   8        5     464640 sda5

   8        6     581632 sda6 \\已識別出新分區

  11        0    4228096 sr0

 253        0    8880128 dm-0

 253        1    1048576 dm-1

[root@localhost ~]#

格式化新建的分區mkfs命令

    把sda6、sda5格式為ext4

[root@localhost ~]# mkfs.ext4 -L test /dev/sda6

mke2fs 1.42.9 (28-Dec-2013)

Filesystem label=test

OS type: Linux

Block size=4096 (log=2)

Fragment size=4096 (log=2)

Stride=0 blocks, Stripe width=0 blocks

36400 inodes, 145408 blocks

7270 blocks (5.00%) reserved for the super user

First data block=0

Maximum filesystem blocks=148897792

5 block groups

32768 blocks per group, 32768 fragments per group

7280 inodes per group

Superblock backups stored on blocks:

32768, 98304

Allocating group tables: done

Writing inode tables: done

Creating journal (4096 blocks): done

Writing superblocks and filesystem accounting information: done


也可用 ext系列專用的格式化工具mke2fs

[root@localhost ~]# mke2fs -t ext3 -m 5 -L TEST_sda5 -b 4096 /dev/sda5

mke2fs 1.42.9 (28-Dec-2013)

Filesystem label=TEST_sda5 \\標識符為TEST_sda5

OS type: Linux

Block size=4096 (log=2) \\block為4096

Fragment size=4096 (log=2)

Stride=0 blocks, Stripe width=0 blocks

116224 inodes, 116160 blocks

5808 blocks (5.00%) reserved for the super user \\為管理員預留5%的空間

First data block=0

Maximum filesystem blocks=121634816

4 block groups

32768 blocks per group, 32768 fragments per group

29056 inodes per group

Superblock backups stored on blocks:

32768, 98304

Allocating group tables: done

Writing inode tables: done

Creating journal (4096 blocks): done

Writing superblocks and filesystem accounting information: done

查看所有分區的屬性使用blkid

[root@localhost ~]# blkid

/dev/sda1: UUID="050a347a-4a99-4e80-a6b4-a4ed0a47eaa1" TYPE="xfs"

/dev/sda2: UUID="dv2Krn-BlSL-4NBt-yduR-BXax-tChJ-V2YpbM" TYPE="LVM2_member"

/dev/sda5: LABEL="TEST_sda5" UUID="b5b2b12b-236d-4578-845b-a5632ca5eafa" SEC_TYPE="ext2" TYPE="ext3"

/dev/sda6: LABEL="test" UUID="a0a549a2-0aec-4ff6-bce8-f2dfdfa1539e" TYPE="ext4"

/dev/sr0: UUID="2015-12-09-23-14-10-00" LABEL="CentOS 7 x86_64" TYPE="iso9660" PTTYPE="dos"

/dev/mapper/centos-root: UUID="0adba78a-e1e3-4900-87c2-069105c6a1fc" TYPE="xfs"

/dev/mapper/centos-swap: UUID="2228d7dd-b7ed-44fb-9f68-668fc942a542" TYPE="swap"

使用fsck命令檢測分區

[root@localhost ~]# fsck.ext3 -frc /dev/sda5   \\ f是強制檢測  c是提示測試進度 r進行交互式檢測

e2fsck 1.42.9 (28-Dec-2013)

Checking for bad blocks (read-only test): done

TEST_sda5: Updating bad block inode.

Pass 1: Checking inodes, blocks, and sizes

Pass 2: Checking directory structure

Pass 3: Checking directory connectivity

Pass 4: Checking reference counts

Pass 5: Checking group summary information

TEST_sda5: ***** FILE SYSTEM WAS MODIFIED *****

TEST_sda5: 11/116224 files (0.0% non-contiguous), 7837/116160 blocks

[root@localhost ~]#
