writeback機制源碼分析

writeback相關數據結構

與writeback相關的數據結構主要有:

1,backing_dev_info,該數據結構描述了backing_dev的所有信息,通常塊設備的request queue中會包含backing_dev對象。

2,bdi_writeback,該數據結構封裝了writeback的內核線程以及需要操作的inode隊列。

3,wb_writeback_work,該數據結構封裝了writeback的工作任務。

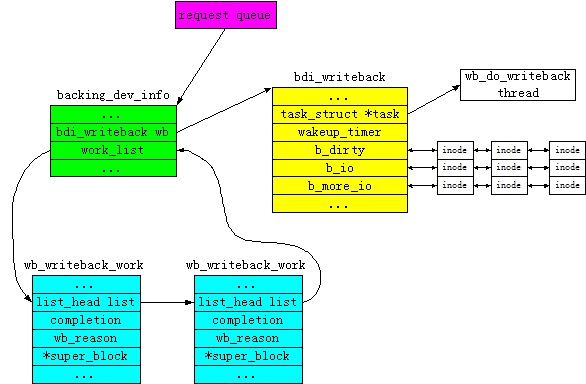

各數據結構之間的關系如下圖所示:

下面對各個數據結構做簡要介紹。

bdi information

bdi對象在塊設備添加的時候需要注冊到系統的bdi隊列中。對於ext3而言,在mount的時候需要將底層塊設備的bdi對象聯系到ext3 root_inode中。bdi對象數據結構定義如下:



struct backing_dev_info {
    struct list_head bdi_list;
    unsigned long ra_pages; /* max readahead in PAGE_CACHE_SIZE units */
    unsigned long state;    /* Always use atomic bitops on this */
    unsigned int capabilities; /* Device capabilities */
    congested_fn *congested_fn; /* Function pointer if device is md/dm */
    void *congested_data;   /* Pointer to aux data for congested func */

    char *name;

    struct percpu_counter bdi_stat[NR_BDI_STAT_ITEMS];

    unsigned long bw_time_stamp;    /* last time write bw is updated */
    unsigned long dirtied_stamp;
    unsigned long written_stamp;    /* pages written at bw_time_stamp */
    unsigned long write_bandwidth;  /* the estimated write bandwidth */
    unsigned long avg_write_bandwidth; /* further smoothed write bw */

    /*
     * The base dirty throttle rate, re-calculated on every 200ms.
     * All the bdi tasks' dirty rate will be curbed under it.
     * @dirty_ratelimit tracks the estimated @balanced_dirty_ratelimit
     * in small steps and is much more smooth/stable than the latter.
     */
    unsigned long dirty_ratelimit;
    unsigned long balanced_dirty_ratelimit;

    struct prop_local_percpu completions;
    int dirty_exceeded;

    unsigned int min_ratio;
    unsigned int max_ratio, max_prop_frac;

    struct bdi_writeback wb;  /* default writeback info for this bdi,writeback對象 */
    spinlock_t wb_lock;   /* protects work_list */

    /* 任務鏈表 */
    struct list_head work_list;

    struct device *dev;
    /* 在laptop模式下應用的定時器 */
    struct timer_list laptop_mode_wb_timer;

#ifdef CONFIG_DEBUG_FS
    struct dentry *debug_dir;
    struct dentry *debug_stats;
#endif
};

在bdi數據結構中定義了一個writeback對象,該對象是對writeback內核線程的描述,並且封裝了需要處理的inode隊列。在bdi數據結構中有一條work_list,該work隊列維護了writeback內核線程需要處理的任務。如果該隊列上沒有work可以處理,那麼writeback內核線程將會睡眠等待。

writeback

writeback對象封裝了內核線程task以及需要處理的inode隊列。當page cache/buffer cache需要刷新radix tree上的inode時,可以將該inode掛載到writeback對象的b_dirty隊列上,然後喚醒writeback線程。在處理過程中,inode會被移到b_io隊列上進行處理。多條鏈表的方式可以降低多線程之間的資源共享。writeback數據結構具體定義如下:



struct bdi_writeback {
    struct backing_dev_info *bdi;   /* our parent bdi */
    unsigned int nr;

    unsigned long last_old_flush;   /* last old data flush */
    unsigned long last_active;  /* last time bdi thread was active */

    struct task_struct *task;   /* writeback thread */
    struct timer_list wakeup_timer; /* used for delayed bdi thread wakeup */
    struct list_head b_dirty;   /* dirty inodes */
    struct list_head b_io;      /* parked for writeback */
    struct list_head b_more_io; /* parked for more writeback */
    spinlock_t list_lock;       /* protects the b_* lists */
};



writeback work

wb_writeback_work數據結構是對writeback任務的封裝,不同的任務可以采用不同的刷新策略。writeback線程的處理對象就是writeback_work。如果writeback_work隊列為空,那麼內核線程就可以睡眠了。Writeback_work的數據結構定義如下:



struct wb_writeback_work {
    long nr_pages;
    struct super_block *sb; /* superblock對象 */
    unsigned long *older_than_this;
    enum writeback_sync_modes sync_mode;
    unsigned int tagged_writepages:1;
    unsigned int for_kupdate:1;
    unsigned int range_cyclic:1;
    unsigned int for_background:1;
    enum wb_reason reason;      /* why was writeback initiated? */

    struct list_head list;      /* pending work list,鏈入bdi-> work_list隊列 */
    struct completion *done;    /* set if the caller waits,work完成時通知調用者 */
};



writeback主要函數分析

writeback機制的主要函數包括如下兩個方面:

1,管理bdi對象並且fork相應的writeback內核線程處理cache數據的刷新工作。

2,writeback內核線程處理函數,實現dirty page的刷新操作

writeback線程管理

Linux中有一個內核守護線程,該線程用來管理系統bdi隊列,並且負責為block device創建writeback thread。當bdi中有dirty page並且還沒有為bdi分配內核線程的時候,bdi_forker_thread程序會為其分配線程資源;當一個writeback線程長時間處於空閒狀態時,bdi_forker_thread程序會釋放該線程資源。

writeback線程管理程序分析如下:

static int bdi_forker_thread(void *ptr)
{
    struct bdi_writeback *me = ptr;

    current->flags |= PF_SWAPWRITE;
    set_freezable();

    /*
     * Our parent may run at a different priority, just set us to normal
     */
    set_user_nice(current, 0);

    for (;;) {
        struct task_struct *task = NULL;
        struct backing_dev_info *bdi;
        enum {
            NO_ACTION,   /* Nothing to do */
            FORK_THREAD, /* Fork bdi thread */
            KILL_THREAD, /* Kill inactive bdi thread */
        } action = NO_ACTION;

        /*
         * Temporary measure, we want to make sure we don't see
         * dirty data on the default backing_dev_info
         */
        if (wb_has_dirty_io(me) || !list_empty(&me->bdi->work_list)) {
            del_timer(&me->wakeup_timer);
            wb_do_writeback(me, 0);
        }

        spin_lock_bh(&bdi_lock);
        /*
         * In the following loop we are going to check whether we have
         * some work to do without any synchronization with tasks
         * waking us up to do work for them. Set the task state here
         * so that we don't miss wakeups after verifying conditions.
         */
        set_current_state(TASK_INTERRUPTIBLE);
        /* 遍歷所有的bdi對象,檢查這些bdi是否存在髒數據,如果有髒數據,那麼需要為其fork線程,然後做writeback操作 */
        list_for_each_entry(bdi, &bdi_list, bdi_list) {
            bool have_dirty_io;

            if (!bdi_cap_writeback_dirty(bdi) ||
                 bdi_cap_flush_forker(bdi))
                continue;

            WARN(!test_bit(BDI_registered, &bdi->state),
                 "bdi %p/%s is not registered!\n", bdi, bdi->name);
            /* 檢查是否存在髒數據 */
            have_dirty_io = !list_empty(&bdi->work_list) ||
                    wb_has_dirty_io(&bdi->wb);

            /*
             * If the bdi has work to do, but the thread does not
             * exist - create it.
             */
            if (!bdi->wb.task && have_dirty_io) {
                /*
                 * Set the pending bit - if someone will try to
                 * unregister this bdi - it'll wait on this bit.
                 */
                /* 如果有髒數據,並且不存在線程,那麼接下來做線程的FORK操作 */
                set_bit(BDI_pending, &bdi->state);
                action = FORK_THREAD;
                break;
            }

            spin_lock(&bdi->wb_lock);

            /*
             * If there is no work to do and the bdi thread was
             * inactive long enough - kill it. The wb_lock is taken
             * to make sure no-one adds more work to this bdi and
             * wakes the bdi thread up.
             */
            /* 如果一個bdi長時間沒有髒數據,那麼執行線程的KILL操作,結束掉該bdi對應的writeback線程 */
            if (bdi->wb.task && !have_dirty_io &&
                time_after(jiffies, bdi->wb.last_active +
                        bdi_longest_inactive())) {
                task = bdi->wb.task;
                bdi->wb.task = NULL;
                spin_unlock(&bdi->wb_lock);
                set_bit(BDI_pending, &bdi->state);
                action = KILL_THREAD;
                break;
            }
            spin_unlock(&bdi->wb_lock);
        }
        spin_unlock_bh(&bdi_lock);

        /* Keep working if default bdi still has things to do */
        if (!list_empty(&me->bdi->work_list))
            __set_current_state(TASK_RUNNING);
        /* 執行線程的FORK和KILL操作 */
        switch (action) {
        case FORK_THREAD:
            /* FORK一個bdi_writeback_thread線程,該線程的名字為flush-major:minor */
            __set_current_state(TASK_RUNNING);
            task = kthread_create(bdi_writeback_thread, &bdi->wb,
                          "flush-%s", dev_name(bdi->dev));
            if (IS_ERR(task)) {
                /*
                 * If thread creation fails, force writeout of
                 * the bdi from the thread. Hopefully 1024 is
                 * large enough for efficient IO.
                 */
                writeback_inodes_wb(&bdi->wb, 1024,
                            WB_REASON_FORKER_THREAD);
            } else {
                /*
                 * The spinlock makes sure we do not lose
                 * wake-ups when racing with 'bdi_queue_work()'.
                 * And as soon as the bdi thread is visible, we
                 * can start it.
                 */
                spin_lock_bh(&bdi->wb_lock);
                bdi->wb.task = task;
                spin_unlock_bh(&bdi->wb_lock);
                wake_up_process(task);
            }
            bdi_clear_pending(bdi);
            break;

        case KILL_THREAD:
            /* KILL一個線程 */
            __set_current_state(TASK_RUNNING);
            kthread_stop(task);
            bdi_clear_pending(bdi);
            break;

        case NO_ACTION:
            /* 如果沒有可執行的動作,那麼調度本線程睡眠一段時間 */
            if (!wb_has_dirty_io(me) || !dirty_writeback_interval)
                /*
                 * There are no dirty data. The only thing we
                 * should now care about is checking for
                 * inactive bdi threads and killing them. Thus,
                 * let's sleep for longer time, save energy and
                 * be friendly for battery-driven devices.
                 */
                schedule_timeout(bdi_longest_inactive());
            else
                schedule_timeout(msecs_to_jiffies(dirty_writeback_interval * 10));
            try_to_freeze();
            break;
        }
    }

    return 0;
}

writeback線程

writeback線程是bdi_forker_thread 創建的,該線程的任務就是處理等待的數據回刷任務。線程處理函數為bdi_writeback_thread,其會調用wb_do_writeback函數完成具體操作,該函數分析如下:

long wb_do_writeback(struct bdi_writeback *wb, int force_wait)
{
    struct backing_dev_info *bdi = wb->bdi;
    struct wb_writeback_work *work;
    long wrote = 0;

    set_bit(BDI_writeback_running, &wb->bdi->state);
    /* 處理等待的work,所有等待work pengding在bdi->work_list上 */
    while ((work = get_next_work_item(bdi)) != NULL) {
        /*
         * Override sync mode, in case we must wait for completion
         * because this thread is exiting now.
         */
        if (force_wait)
            work->sync_mode = WB_SYNC_ALL;

        trace_writeback_exec(bdi, work);
        /* 調用wb_writeback函數處理相應的inode */
        wrote += wb_writeback(wb, work);

        /*
         * Notify the caller of completion if this is a synchronous
         * work item, otherwise just free it.
         */
        /* 通知上層軟件,相應的work已經完成 */
        if (work->done)
            complete(work->done);
        else
            kfree(work);
    }

    /*
     * Check for periodic writeback, kupdated() style
     */
    /* 處理周期性的dirty page刷新作業,buffer cache就會走這條路徑,在下面的函數中會創建work,並且調用wb_writeback函數進行處理 */
    wrote += wb_check_old_data_flush(wb);
    wrote += wb_check_background_flush(wb);
    clear_bit(BDI_writeback_running, &wb->bdi->state);

    return wrote;
}

小結

本文在linux-3.2的基礎上對writeback代碼進行了浏覽。整體上來講,writeback機制是比較簡單的,其核心是通過一個常駐內核線程為bdi對象分配writeback線程,實現對cache中dirty page的數據回刷。
