linux C 網絡編程基礎

TCP/IP基礎

UDP提供無連接服務
UDP的數據格式:

#ifdef __FAVOR_BSD
struct udphdr {
         u_int16_t uh_sport;           /* source port */
         u_int16_t uh_dport;           /* destination port */
         u_int16_t uh_ulen;            /* udp length */
         u_int16_t uh_sum;             /* udp checksum */
};
#else

struct udphdr {
  u_int16_t     source;
  u_int16_t     dest;
  u_int16_t     len;
  u_int16_t     check;
};
#endif

TCP是面向連接的,切實全雙工的。

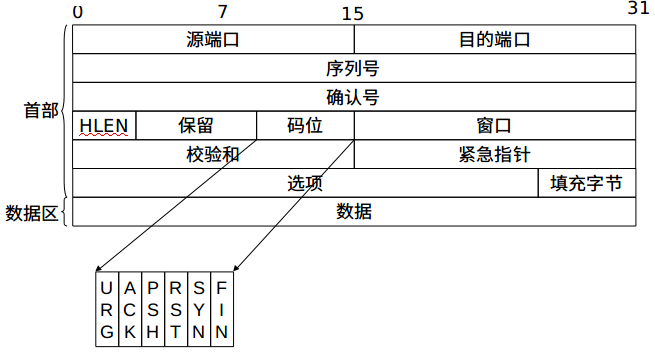

TCP協議數據段:
這裡寫圖片描述

struct tcphdr {
    WORD    SourPort;
    WORD    DestPort;
    DWORD   SeqNo;
    DWORD   AckNo;
    BYTE        HLen;
    BYTE        Flag;
    WORD    Window;
    WORD    ChkSum;
    WORD    UrgPtr;
    /* Put options here. */
};

TCP的time_wait:
執行主動關閉的那端進入這種狀態。這個端點在該狀態的持續時間是2MSL(最長分節生命周期)。
網絡中的幾類地址:
物理地址:即MAC地址 (數據鏈路層)
邏輯地址:即IP地址
端口地址:應用程序端口號
域名地址:取代IP地址記憶

IPv4的套接字地址:

/* Internet address.  */
typedef uint32_t in_addr_t;
struct in_addr
  {
    in_addr_t s_addr;
  };
/* Structure describing an Internet socket address.  */
struct sockaddr_in
  {
    __SOCKADDR_COMMON (sin_);
    in_port_t sin_port;         /* Port number.  */
    struct in_addr sin_addr;        /* Internet address.  */

    /* Pad to size of `struct sockaddr'.  */
    unsigned char sin_zero[sizeof (struct sockaddr) -
               __SOCKADDR_COMMON_SIZE -
               sizeof (in_port_t) -
               sizeof (struct in_addr)];
  };

IPv6套接字地址:

struct in6_addr
  {
    union
      {
    uint8_t __u6_addr8[16];
#ifdef __USE_MISC
    uint16_t __u6_addr16[8];
    uint32_t __u6_addr32[4];
#endif
      } __in6_u;
#define s6_addr         __in6_u.__u6_addr8
#ifdef __USE_MISC
# define s6_addr16      __in6_u.__u6_addr16
# define s6_addr32      __in6_u.__u6_addr32
#endif
  };

/* Ditto, for IPv6.  */
struct sockaddr_in6
  {
    __SOCKADDR_COMMON (sin6_);
    in_port_t sin6_port;    /* Transport layer port # */
    uint32_t sin6_flowinfo; /* IPv6 flow information */
    struct in6_addr sin6_addr;  /* IPv6 address */
    uint32_t sin6_scope_id; /* IPv6 scope-id */
  };

TCP套接字編程

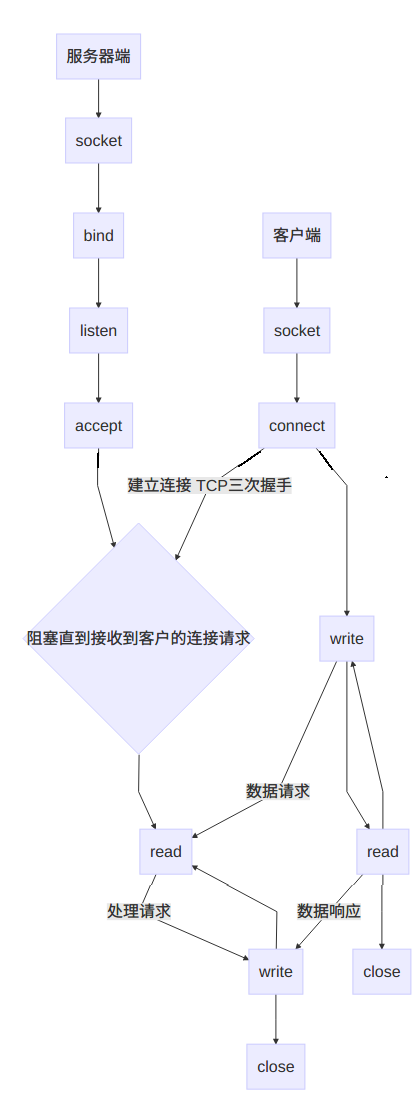

tcp套接字網絡編程的主要實現過程:
這裡寫圖片描述
關於socket函數:

#include
int socket(int family,int type,int protocol)

family指明了協議族。例如:AF_INET(IPv4協議);AF_INET6(IPV6協議);AF_ROUTE(路由套接口)
type指明了套接字類型。例如:
SOCK_STREAM字節流套接口(TCP);
SOCK_DGRAM數據包套接口(UDP);
SOCK_RAW原始套接口

protocol指明協議標志

端口與套接字

端口:訪問網絡不同計算機程序的編號
IP地址標記了不同的電腦,而域名則是iP地址便於記憶的別名

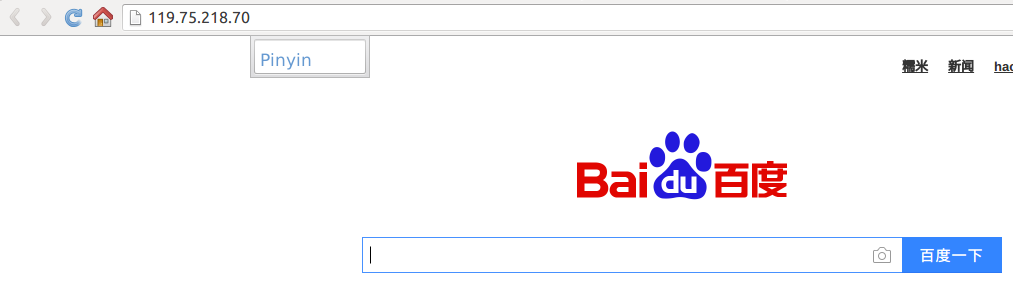

edemon@ubuntu:~$ ping www.baidu.com
PING www.a.shifen.com (119.75.218.70) 56(84) bytes of data.
這裡寫圖片描述vcq9oaNUQ1C6zVVEULvh0/a1vc2syrHOqrbguPbTptPDs8zQ8s2syrGyoreivfjQ0M2o0MW1xM7KzOKjrM6qwcvH+LfWsrvNrLXE06bTw734s8y1xNOm08O6zcGsvdOjrNDo0qrKudPD06bTw7PM0PLT61RDUC9JUNCt0um9u7ultcTM173T19a907/aoaM8YnIgLz4NCszXvdPX1qO6tKvK5LLj0K3S6Su2y7/ausUrSVC12Na3PC9wPg0KPGgzIGlkPQ=="域名和ip的相互轉換">域名和IP的相互轉換

IP地址和網絡地址:
網絡地址很大一部分是由地址掩碼決定的。
IP 轉 domain:

#include
#include
#include
#include
#include
#include
#include

int  main()
{
   struct hostent *host;
   char addr[]="208.108.249.216"; //202.108.249.216  61.135.169.121   http://61.135.169.125/
   struct in_addr in;
   struct sockaddr_in addr_in;

   host=gethostbyaddr(addr,sizeof(addr),AF_INET);
   if(host!=(struct hostent *)NULL)
   {
       memcpy(&addr_in.sin_addr.s_addr,host->h_addr,4);
       in.s_addr=addr_in.sin_addr.s_addr;
       printf("Domain name: %s \n",host->h_name);
       printf("IP length:    %d\n",host->h_length);
       printf("Type:    %d\n",host->h_addrtype);
       printf("IP          : %s \n",inet_ntoa(in));
    }
    else
    {
        char *buffer = strerror(errno);
          printf("%s\n",buffer);
    }
}
/*
Domain name: 50-48-56-46.dr05.nrwc.ny.frontiernet.net
IP length:    16
Type:    2
IP          : 50.48.56.46
*/

domain 轉IP:

#include
#include
#include
#include
#include
#include

int  main()
{
   struct hostent *host;
   char hostname[]="www.baidu.com";
   char hostname2[]="www.012www.com";
   struct in_addr in;
   struct sockaddr_in sock_in;
   extern int h_errno;

   if((host=gethostbyname(hostname))!=NULL){
       //printf("%s\n",host->h_addr);
       memcpy(&sock_in.sin_addr.s_addr, host->h_addr, 4);
       in.s_addr=sock_in.sin_addr.s_addr;
       printf("Domain name: %s \n",hostname);
       printf("IP length:    %d\n",host->h_length);
       printf("Type:    %d\n",host->h_addrtype);
       /*inet_ntoa()用來將參數in所指的網絡二進制的數字轉換成網絡地址,
       然後將指向此網絡地址字符串的指針返回。*/
       printf("IP          : %s \n",inet_ntoa(in));
    }
    else{
        printf("Domain name: %s \n",hostname);
        printf("error: %d\n",h_errno);
        printf("%s\n",hstrerror(h_errno));
    }

   if((host=gethostbyname(hostname2))!=NULL){
       memcpy(&sock_in.sin_addr.s_addr,host->h_addr,4);
       in.s_addr=sock_in.sin_addr.s_addr;
       printf("Domain name: %s \n",hostname2);
       printf("IP          : %s \n",inet_ntoa(in));
       printf("IP length:    %d\n",host->h_length);
       printf("Type:    %d\n",host->h_addrtype);
    }
    else{
        printf("Domain name: %s \n",hostname2);
        printf("error: %d\n",h_errno);
            printf("%s\n",hstrerror(h_errno));
    }
}
/*
Domain name: www.baidu.com
IP length:    4
Type:    2
IP          : 61.135.169.121
Domain name: www.012www.com
error: 1
Unknown host
*/

網絡地址轉換

對於不同的socket domain定義了一個通用的數據結構——套接字結構:

struct sockaddr
{
unsigned short int sa_family;
char sa_data[14];
};

sa_family 為調用socket()時的domain參數,即AF_xxxx值。
sa_data 最多使用14個字符長度。
此sockaddr結構會因使用不同的socket domain而有不同結構定義,例如使用AF_INET domain,其
socketaddr結構定義便為

struct socketaddr_in
{
unsigned short int sin_family;
uint16_t sin_port;
struct in_addr sin_addr;
unsigned char sin_zero[8];
};
struct in_addr
{
uint32_t s_addr;
};

sin_family 即為sa_family
sin_port 為使用的port編號
sin_addr.s_addr 為IP 地址
sin_zero 未使用。

struct hostent{
char * h_name;
char ** h_aliases;
short h_addrtype;
short h_length;
char ** h_addr_list;
};

主機字節序和網絡字節序的轉換:

unsigned long int htonl(unsigned long int hostlong);
將32位主機字符順序轉換成網絡字符順序
unsigned short int htons(unsigned short int hostshort);
將16位主機字符順序轉換成網絡字符順序
unsigned long int ntohl(unsigned long int netlong);
將32位網絡字符順序轉換成主機字符順序
unsigned short int ntohs(unsigned short int netshort);
將16位網絡字符順序轉換成主機字符順序

#include
#include

int  main()
{
   long local;
   int port;
   local =123456;
   port=123456;
   printf("host 32 %ld -> net 32: %d\n",local,htonl(local));
   printf("host 16 %d -> net 16: %d\n",port,htons(port));
   printf("net 32 %d -> host 32: %d\n",htonl(local),ntohl(htonl(local)));
   printf("net 16 %d -> host 16: %d\n",htons(port),ntohs(htons(port)));
   return 0;
}
/*
host 32 123456 -> net 32: 1088553216
host 16 123456 -> net 16: 16610
net 32 1088553216 -> host 32: 123456
net 16 16610 -> host 16: 57920
*/

long inet_addr(char *str)
將網絡IP地址轉化成10進制長整型數
頭文件:

#include
#include
#include

char *inet_ntoa(struct in_addr in);
將整數型地址轉化成點分十進制地址(在計算機中經常使用長整型數表示IP地址)
表頭文件

#include
#include
#include

例子:

#include
#include
#include
#include
int  main()
{
   struct in_addr ip;
   ip.s_addr=16885952;
   char *str=inet_ntoa(ip);
   printf("%s\n",str);
   printf("%u\n", inet_addr(str));
}
/*
192.168.1.1
16885952
*/

系統支持的網絡服務

cat /etc/protocols
……
daytime     13/tcp
daytime     13/udp
netstat     15/tcp
qotd        17/tcp      quote
msp     18/tcp              # message send protocol
msp     18/udp
chargen     19/tcp      ttytst source
chargen     19/udp      ttytst source
ftp-data    20/tcp
ftp     21/tcp
……

獲取服務信息:

#include
#include

int  main()
{
    struct servent *ser;
    if( ser=getservbyname("http","tcp"))  //通過名字獲取網絡服務
    {
       printf("name : %s\n",ser->s_name);
       printf("net port: %d  ", ser->s_port);
       printf("host port : %d\n",ntohs(ser->s_port));  //將16位網絡字符順序轉換成主機字符順序
       printf("protocol:%s\n",ser->s_proto);
       printf("alias: %s\n",ser->s_aliases[0]);
    }
    else
    {
        printf("there is no such a service.\n");
    }
    puts("---------------------------------------------");
    if( ser=getservbyname("hehe","tcp"))
    {
       printf("name : %s\n",ser->s_name);
       printf("net port: %d  ", ser->s_port);
       printf("host port : %d\n",ntohs(ser->s_port));
       printf("protocol:%s\n",ser->s_proto);
       printf("alias: %s\n",ser->s_aliases[0]);
    }
    else
    {
        printf("there is no such a service.\n");
    }
    puts("---------------------------------------------");  //通過端口號獲取網絡服務
    if( ser=getservbyport(htons(21),"tcp"))  //將16位主機字符順序轉換成網絡字符順序
    {
       printf("name : %s\n",ser->s_name);
       printf("net port: %d  ", ser->s_port);
       printf("host port : %d\n",ntohs(ser->s_port));
       printf("protocol:%s\n",ser->s_proto);
       printf("alias: %s\n",ser->s_aliases[0]);
    }
    else
    {
        printf("there is no such a service.\n");
    }
}
/*
name : http
net port: 20480  host port : 80
protocol:tcp
alias: www
---------------------------------------------
there is no such a service.
---------------------------------------------
name : ftp
net port: 5376  host port : 21
protocol:tcp
alias: (null)
*/

捕獲錯誤

void herror(const char *s);
可以顯示網絡函數上出現的錯誤。先輸出這個字符串,然後輸出錯誤信息。
extern int h_errno
可以捕獲錯誤編號。
char *hstrerror(int err)
返回錯誤編碼對應的錯誤信息。
三個和錯誤相關的函數或變量都與頭文件netdb.h相關

#include
#include
int  main()
{
    herror("result : ");
    extern int h_errno;
    printf("%s\n", hstrerror(h_errno));
}

獲取協議數據

系統支持的協議:

ip  0   IP      # internet protocol, pseudo protocol number
hopopt  0   HOPOPT      # IPv6 Hop-by-Hop Option [RFC1883]
icmp    1   ICMP        # internet control message protocol
igmp    2   IGMP        # Internet Group Management
ggp 3   GGP     # gateway-gateway protocol
ipencap 4   IP-ENCAP    # IP encapsulated in IP (officially ``IP'')
st  5   ST      # ST datagram mode
tcp 6   TCP     # transmission control protocol
egp 8   EGP     # exterior gateway protocol
igp 9   IGP     # any private interior gateway (Cisco)
pup 12  PUP     # PARC universal packet protocol
udp 17  UDP     # user datagram protocol
hmp 20  HMP     # host monitoring protocol
xns-idp 22  XNS-IDP     # Xerox NS IDP
rdp 27  RDP     # "reliable datagram" protocol
iso-tp4 29  ISO-TP4     # ISO Transport Protocol class 4 [RFC905]
dccp    33  DCCP        # Datagram Congestion Control Prot. [RFC4340]
xtp 36  XTP     # Xpress Transfer Protocol
ddp 37  DDP     # Datagram Delivery Protocol
idpr-cmtp 38    IDPR-CMTP   # IDPR Control Message Transport
ipv6    41  IPv6        # Internet Protocol, version 6
ipv6-route 43   IPv6-Route  # Routing Header for IPv6
ipv6-frag 44    IPv6-Frag   # Fragment Header for IPv6
idrp    45  IDRP        # Inter-Domain Routing Protocol
rsvp    46  RSVP        # Reservation Protocol
gre 47  GRE     # General Routing Encapsulation
esp 50  IPSEC-ESP   # Encap Security Payload [RFC2406]
ah  51  IPSEC-AH    # Authentication Header [RFC2402]
skip    57  SKIP        # SKIP
ipv6-icmp 58    IPv6-ICMP   # ICMP for IPv6
ipv6-nonxt 59   IPv6-NoNxt  # No Next Header for IPv6
ipv6-opts 60    IPv6-Opts   # Destination Options for IPv6
rspf    73  RSPF CPHB   # Radio Shortest Path First (officially CPHB)
vmtp    81  VMTP        # Versatile Message Transport
eigrp   88  EIGRP       # Enhanced Interior Routing Protocol (Cisco)
ospf    89  OSPFIGP     # Open Shortest Path First IGP
ax.25   93  AX.25       # AX.25 frames
ipip    94  IPIP        # IP-within-IP Encapsulation Protocol
etherip 97  ETHERIP     # Ethernet-within-IP Encapsulation [RFC3378]
encap   98  ENCAP       # Yet Another IP encapsulation [RFC1241]
#   99          # any private encryption scheme
pim 103 PIM     # Protocol Independent Multicast
ipcomp  108 IPCOMP      # IP Payload Compression Protocol
vrrp    112 VRRP        # Virtual Router Redundancy Protocol [RFC5798]
l2tp    115 L2TP        # Layer Two Tunneling Protocol [RFC2661]
isis    124 ISIS        # IS-IS over IPv4
sctp    132 SCTP        # Stream Control Transmission Protocol
fc  133 FC      # Fibre Channel
mobility-header 135 Mobility-Header # Mobility Support for IPv6 [RFC3775]
udplite 136 UDPLite     # UDP-Lite [RFC3828]
mpls-in-ip 137  MPLS-in-IP  # MPLS-in-IP [RFC4023]
manet   138         # MANET Protocols [RFC5498]
hip 139 HIP     # Host Identity Protocol
shim6   140 Shim6       # Shim6 Protocol [RFC5533]
wesp    141 WESP        # Wrapped Encapsulating Security Payload
rohc    142 ROHC        # Robust Header Compression

獲取協議信息的例子:

#include
#include

int  main()
{
    struct protoent *pro;
    pro=getprotobyname("tcp");  // by protocol name
    printf("protocol name : %s\n",pro->p_name);
    printf("protocol number : %d\n",pro->p_proto);
    printf("protocol alias: %s\n",pro->p_aliases[0]);
    puts("------------------------------");
    pro=getprotobynumber(2);   // by protocol number
    printf("protocol name : %s\n",pro->p_name);
    printf("protocol number : %d\n",pro->p_proto);
    printf("protocol alias: %s\n",pro->p_aliases[0]);
}

protocol name : tcp
protocol number : 6
protocol alias: TCP
------------------------------
protocol name : igmp
protocol number : 2
protocol alias: IGMP

其他的套接字函數

自己的主機IP地址:
ifconfig
下面是ANSI C 中的字節操作函數:
1.
void *memset(void *s, int c, size_t n);
memset()會將參數s所指的內存區域前n個字節以參數c填入,然後返回指向s的指針。
2.
void *memcpy(void *dest, const void *src, size_t n);
memcpy()用來拷貝src所指的內存內容前n個字節到dest所指的內存地址上。與strcpy()不同的是,
memcpy()會完整的復制n個字節,不會因為遇到字符串結束’\0’而結束。
3.
int memcmp(const void *s1, const void *s2, size_t n);
memcmp()用來比較s1和s2所指的內存區間前n個字符。

字符串IP和二進制IP的相互轉換(僅能處理IPv4):
int inet_aton(const char *cp, struct in_addr *inp);
函數說明
inet_aton()用來將參數cp所指的網絡地址字符串轉換成網絡使用的二進制的數字,然後存於參數inp所
指的in_addr結構中。

返回值
成功則返回非0值,失敗則返回0。

#include
#include
#include
#include

int main(){
    struct in_addr numstr;
    char IP[20]="192.160.8.60";
    if(inet_aton(IP,&numstr)){
         printf("0x%x\n",numstr.s_addr);
    }
    return 0;
}
/*
0x3c08a0c0
*/

inet_pton
int inet_pton(int af, const char *src, void *dst);
用於點分十進制轉成二進制整數(16進制)。
成功返回1,af無效返回0,出錯返回-1,指針dst存儲得到的IP地址。

inet_ntop
const char *inet_ntop(int af, const void *src, char *dst, socklen_t cnt);
二進制整數(16進制)轉換成點分十進制。
兩者可以同時處理IPv4, IPv6.
AF_INET 是一個IPv4 網絡協議的套接字類型

#include
#include
int main ()
{
    char IPstr1[20]="192.18.0.9";
    char IPstr2[20];
    struct in_addr s; // IPv4地址結構體

    printf("%d\n",AF_INET);
    inet_pton(AF_INET, IPstr1, (void *)&s);
    printf("inet_pton: 0x%x\n", s.s_addr); //二進制整數(16進制)字節序

    inet_ntop(AF_INET, (void *)&s, IPstr2, sizeof(IPstr2));
    printf("inet_ntop: %s\n", IPstr2); //點分十進制

    return 0;
}
/*
2
inet_pton: 0x90012c0
inet_ntop: 192.18.0.9
*/

從進程到內核傳遞套接字地址結構的函數常有3個——bind, connect, sendto
從內核到進程傳遞套接字地址結構的函數常有四個accept, recvfrom, getsockname, getpeername
bind()對socket定位

Copyright © Linux教程網 All Rights Reserved
