Linux SPI驅動設計

1. SPI總線結構

SPI串行外設接口,是一種高速的,全雙工,同步的通信總線。采用主從模式架構,支持多個slave,一般僅支持單Master
\

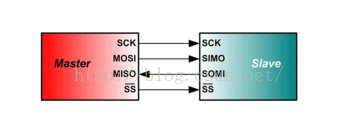

SPI接口共有4根信號線,分別是:

設備選擇線(SS)、時鐘線(SCK)、串行輸出數據線(MOSI)、串行輸入數據線(MISO).

\

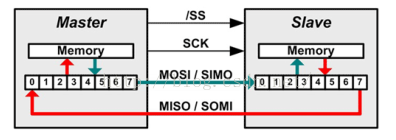

2. 數據傳輸過程

主節點通過MOSI線輸出數據,從節點在SIMO處從主節點讀取數據。同時,也通過SMOI輸出MSB(最高位),

主節點會在MISO處讀取從節點的數據,整個過程將一直持續,直至交換完所有的數據。

\

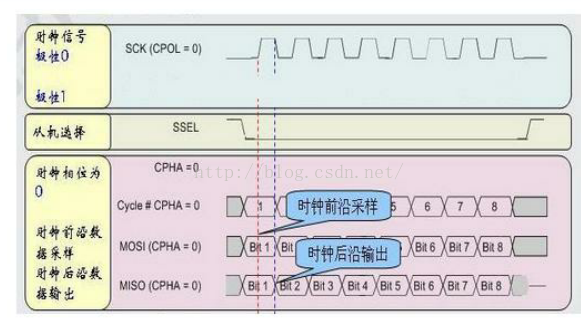

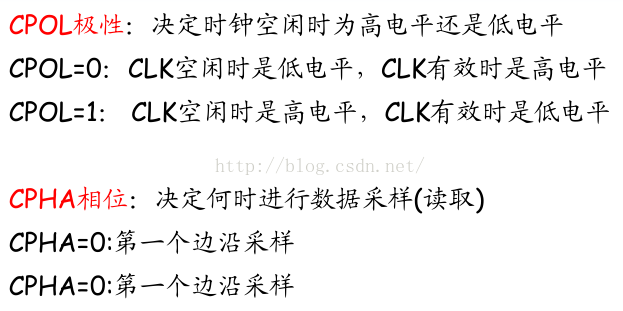

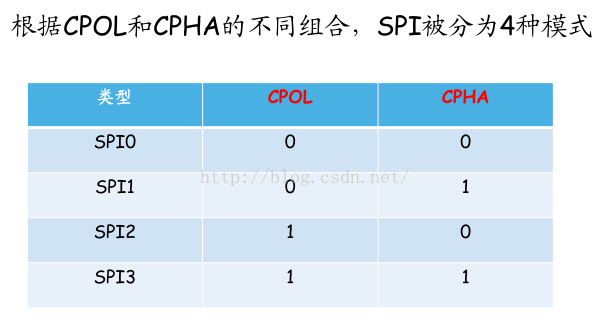

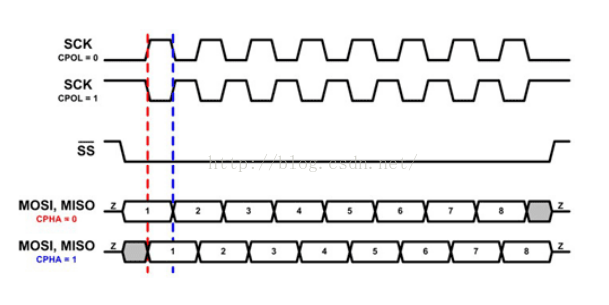

3. 總線時序

\

\

\

\

SPI裸機驅動程序設計:

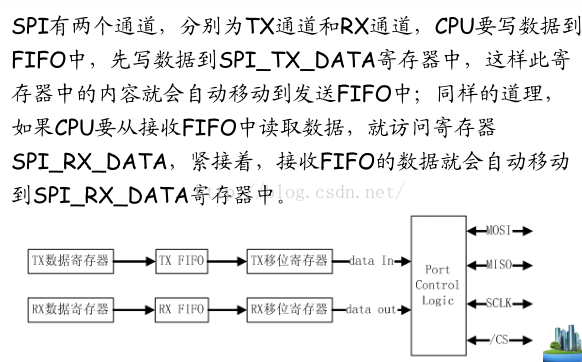

1. SPI控制器工作流程

\

開發板上沒有SPI外設,這裡貼上別人整過SPI裸機驅動測試的鏈接:

http://blog.chinaunix.net/uid-24219701-id-3748675.html

http://blog.csdn.net/cp1300/article/details/8041760

http://blog.csdn.net/wanyeye/article/details/42494559



SPI子系統架構:

\

1. SPI核心

SPI控制器驅動和設備驅動之間的紐帶,它提供了SPI控制器驅動和設備驅動的注冊、注銷方法等。

2. SPI控制器驅動

對SPI控制器驅動的實現

3. SPI設備驅動

對SPI從設備的驅動實現,如 spi flash

首先看看SPI核心驅動中的源碼:

\

還是先上初始化模塊部分:可以看到也是平台總線驅動模型!直接跳到probe函數中(本文件中的probe函數)



static int __init s3c24xx_spi_probe(struct platform_device *pdev)
這兒函數內容比較多
static int __init s3c24xx_spi_probe(struct platform_device *pdev)
{
	struct s3c2410_spi_info *pdata;
	struct s3c24xx_spi *hw;
	struct spi_master *master;
	struct resource *res;
	int err = 0;

	master = spi_alloc_master(&pdev->dev, sizeof(struct s3c24xx_spi));
	if (master == NULL) {
		dev_err(&pdev->dev, "No memory for spi_master\n");
		err = -ENOMEM;
		goto err_nomem;
	}

	hw = spi_master_get_devdata(master);
	memset(hw, 0, sizeof(struct s3c24xx_spi));

	hw->master = spi_master_get(master);
	hw->pdata = pdata = pdev->dev.platform_data;
	hw->dev = &pdev->dev;

	if (pdata == NULL) {
		dev_err(&pdev->dev, "No platform data supplied\n");
		err = -ENOENT;
		goto err_no_pdata;
	}

	platform_set_drvdata(pdev, hw);
	init_completion(&hw->done);

	/* initialise fiq handler */

	s3c24xx_spi_initfiq(hw);

	/* setup the master state. */

	/* the spi->mode bits understood by this driver: */
	master->mode_bits = SPI_CPOL | SPI_CPHA | SPI_CS_HIGH;

	master->num_chipselect = hw->pdata->num_cs;
	master->bus_num = pdata->bus_num;

	/* setup the state for the bitbang driver */

	hw->bitbang.master         = hw->master;
	hw->bitbang.setup_transfer = s3c24xx_spi_setupxfer;
	hw->bitbang.chipselect     = s3c24xx_spi_chipsel;
	hw->bitbang.txrx_bufs      = s3c24xx_spi_txrx;

	hw->master->setup  = s3c24xx_spi_setup;
	hw->master->cleanup = s3c24xx_spi_cleanup;

	dev_dbg(hw->dev, "bitbang at %p\n", &hw->bitbang);

	/* find and map our resources */

	res = platform_get_resource(pdev, IORESOURCE_MEM, 0);
	if (res == NULL) {
		dev_err(&pdev->dev, "Cannot get IORESOURCE_MEM\n");
		err = -ENOENT;
		goto err_no_iores;
	}

	hw->ioarea = request_mem_region(res->start, resource_size(res),
					pdev->name);

	if (hw->ioarea == NULL) {
		dev_err(&pdev->dev, "Cannot reserve region\n");
		err = -ENXIO;
		goto err_no_iores;
	}

	hw->regs = ioremap(res->start, resource_size(res));
	if (hw->regs == NULL) {
		dev_err(&pdev->dev, "Cannot map IO\n");
		err = -ENXIO;
		goto err_no_iomap;
	}

	hw->irq = platform_get_irq(pdev, 0);
	if (hw->irq < 0) {
		dev_err(&pdev->dev, "No IRQ specified\n");
		err = -ENOENT;
		goto err_no_irq;
	}

	err = request_irq(hw->irq, s3c24xx_spi_irq, 0, pdev->name, hw);//中斷相關部分
	if (err) {
		dev_err(&pdev->dev, "Cannot claim IRQ\n");
		goto err_no_irq;
	}

	hw->clk = clk_get(&pdev->dev, "spi");
	if (IS_ERR(hw->clk)) {
		dev_err(&pdev->dev, "No clock for device\n");
		err = PTR_ERR(hw->clk);
		goto err_no_clk;
	}

	/* setup any gpio we can */

	if (!pdata->set_cs) {
		if (pdata->pin_cs < 0) {
			dev_err(&pdev->dev, "No chipselect pin\n");
			goto err_register;
		}

		err = gpio_request(pdata->pin_cs, dev_name(&pdev->dev));
		if (err) {
			dev_err(&pdev->dev, "Failed to get gpio for cs\n");
			goto err_register;
		}

		hw->set_cs = s3c24xx_spi_gpiocs;
		gpio_direction_output(pdata->pin_cs, 1);
	} else
		hw->set_cs = pdata->set_cs;

	s3c24xx_spi_initialsetup(hw);//硬件相關部分的初始化

	/* register our spi controller */ //向SPI核心注冊驅動

	err = spi_bitbang_start(&hw->bitbang);
	if (err) {
		dev_err(&pdev->dev, "Failed to register SPI master\n");
		goto err_register;
	}

	return 0;

 err_register:
	if (hw->set_cs == s3c24xx_spi_gpiocs)
		gpio_free(pdata->pin_cs);

	clk_disable(hw->clk);
	clk_put(hw->clk);

 err_no_clk:
	free_irq(hw->irq, hw);

 err_no_irq:
	iounmap(hw->regs);

 err_no_iomap:
	release_resource(hw->ioarea);
	kfree(hw->ioarea);

 err_no_iores:
 err_no_pdata:
	spi_master_put(hw->master);

 err_nomem:
	return err;
}

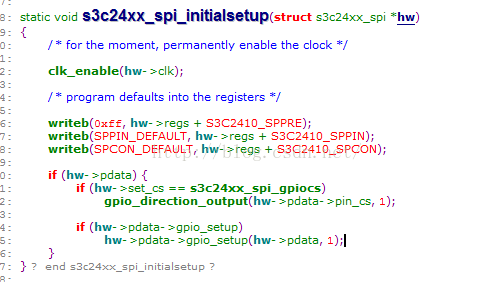

硬件初始化部分:(這個和裸機驅動裡面的差不多)



\

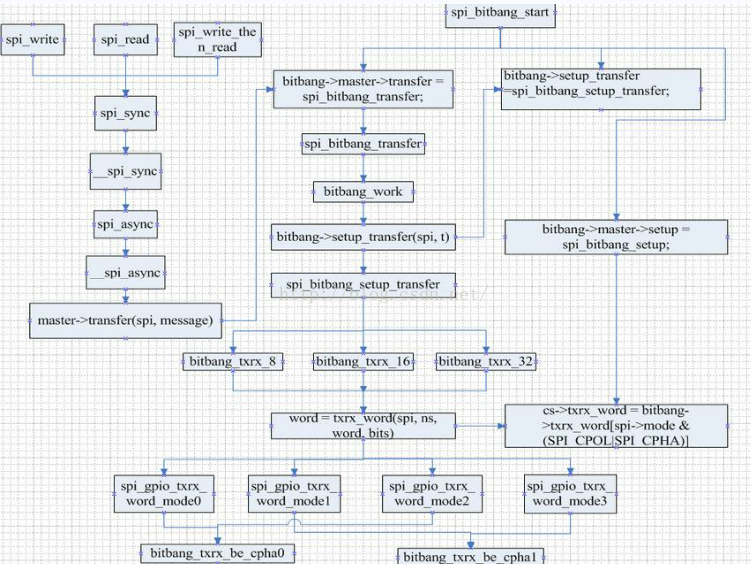

當然讀寫還有中斷部分也是SPI的核心部分,看源碼喽!

下面來簡要介紹SPI從設備驅動程序設計:

\

\

內核源碼文件m25p80.c 一種SPI接口的FLASH驅動!(SPI外設,這裡先簡單領略一下SPI外設驅動)

\

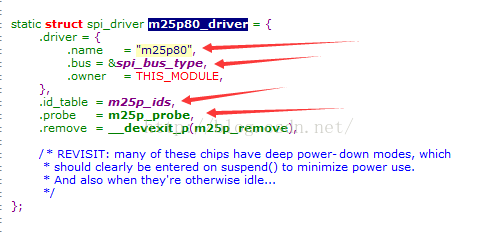

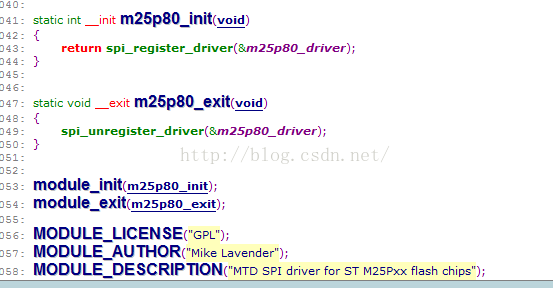

首先還是先看上面的模塊初始化部分!這裡先看看m25p80參數類型:

\

當驅動遇到了相應的設備的時候就會調用上面的m25p_probe函數



/*
 * board specific setup should have ensured the SPI clock used here
 * matches what the READ command supports, at least until this driver
 * understands FAST_READ (for clocks over 25 MHz).
 */
static int __devinit m25p_probe(struct spi_device *spi)
{
	const struct spi_device_id	*id = spi_get_device_id(spi);
	struct flash_platform_data	*data;
	struct m25p			*flash;
	struct flash_info		*info;
	unsigned			i;
	struct mtd_partition		*parts = NULL;
	int				nr_parts = 0;

	/* Platform data helps sort out which chip type we have, as
	 * well as how this board partitions it.  If we don't have
	 * a chip ID, try the JEDEC id commands; they'll work for most
	 * newer chips, even if we don't recognize the particular chip.
	 */
	data = spi->dev.platform_data;
	if (data && data->type) {
		const struct spi_device_id *plat_id;

		for (i = 0; i < ARRAY_SIZE(m25p_ids) - 1; i++) {
			plat_id = &m25p_ids[i];
			if (strcmp(data->type, plat_id->name))
				continue;
			break;
		}

		if (i < ARRAY_SIZE(m25p_ids) - 1)
			id = plat_id;
		else
			dev_warn(&spi->dev, "unrecognized id %s\n", data->type);
	}

	info = (void *)id->driver_data;

	if (info->jedec_id) {
		const struct spi_device_id *jid;

		jid = jedec_probe(spi);
		if (IS_ERR(jid)) {
			return PTR_ERR(jid);
		} else if (jid != id) {
			/*
			 * JEDEC knows better, so overwrite platform ID. We
			 * can't trust partitions any longer, but we'll let
			 * mtd apply them anyway, since some partitions may be
			 * marked read-only, and we don't want to lose that
			 * information, even if it's not 100% accurate.
			 */
			dev_warn(&spi->dev, "found %s, expected %s\n",
				 jid->name, id->name);
			id = jid;
			info = (void *)jid->driver_data;
		}
	}

	flash = kzalloc(sizeof *flash, GFP_KERNEL);
	if (!flash)
		return -ENOMEM;
	flash->command = kmalloc(MAX_CMD_SIZE + FAST_READ_DUMMY_BYTE, GFP_KERNEL);
	if (!flash->command) {
		kfree(flash);
		return -ENOMEM;
	}

	flash->spi = spi;
	mutex_init(&flash->lock);
	dev_set_drvdata(&spi->dev, flash);

	/*
	 * Atmel, SST and Intel/Numonyx serial flash tend to power
	 * up with the software protection bits set
	 */

	if (JEDEC_MFR(info->jedec_id) == CFI_MFR_ATMEL ||
	    JEDEC_MFR(info->jedec_id) == CFI_MFR_INTEL ||
	    JEDEC_MFR(info->jedec_id) == CFI_MFR_SST) {
		write_enable(flash);
		write_sr(flash, 0);
	}

	if (data && data->name)
		flash->mtd.name = data->name;
	else
		flash->mtd.name = dev_name(&spi->dev);

	flash->mtd.type = MTD_NORFLASH;
	flash->mtd.writesize = 1;
	flash->mtd.flags = MTD_CAP_NORFLASH;
	flash->mtd.size = info->sector_size * info->n_sectors;
	flash->mtd.erase = m25p80_erase;
	flash->mtd.read = m25p80_read;

	/* sst flash chips use AAI word program */
	if (JEDEC_MFR(info->jedec_id) == CFI_MFR_SST)
		flash->mtd.write = sst_write;
	else
		flash->mtd.write = m25p80_write;

	/* prefer "small sector" erase if possible */
	if (info->flags & SECT_4K) {
		flash->erase_opcode = OPCODE_BE_4K;
		flash->mtd.erasesize = 4096;
	} else {
		flash->erase_opcode = OPCODE_SE;
		flash->mtd.erasesize = info->sector_size;
	}

	if (info->flags & M25P_NO_ERASE)
		flash->mtd.flags |= MTD_NO_ERASE;

	flash->mtd.dev.parent = &spi->dev;
	flash->page_size = info->page_size;

	if (info->addr_width)
		flash->addr_width = info->addr_width;
	else {
		/* enable 4-byte addressing if the device exceeds 16MiB */
		if (flash->mtd.size > 0x1000000) {
			flash->addr_width = 4;
			set_4byte(flash, info->jedec_id, 1);
		} else
			flash->addr_width = 3;
	}

	dev_info(&spi->dev, "%s (%lld Kbytes)\n", id->name,
			(long long)flash->mtd.size >> 10);

	DEBUG(MTD_DEBUG_LEVEL2,
		"mtd .name = %s, .size = 0x%llx (%lldMiB) "
			".erasesize = 0x%.8x (%uKiB) .numeraseregions = %d\n",
		flash->mtd.name,
		(long long)flash->mtd.size, (long long)(flash->mtd.size >> 20),
		flash->mtd.erasesize, flash->mtd.erasesize / 1024,
		flash->mtd.numeraseregions);

	if (flash->mtd.numeraseregions)
		for (i = 0; i < flash->mtd.numeraseregions; i++)
			DEBUG(MTD_DEBUG_LEVEL2,
				"mtd.eraseregions[%d] = { .offset = 0x%llx, "
				".erasesize = 0x%.8x (%uKiB), "
				".numblocks = %d }\n",
				i, (long long)flash->mtd.eraseregions[i].offset,
				flash->mtd.eraseregions[i].erasesize,
				flash->mtd.eraseregions[i].erasesize / 1024,
				flash->mtd.eraseregions[i].numblocks);


	/* partitions should match sector boundaries; and it may be good to
	 * use readonly partitions for writeprotected sectors (BP2..BP0).
	 */
	if (mtd_has_cmdlinepart()) {
		static const char *part_probes[]
			= { "cmdlinepart", NULL, };

		nr_parts = parse_mtd_partitions(&flash->mtd,
						part_probes, &parts, 0);
	}

	if (nr_parts <= 0 && data && data->parts) {
		parts = data->parts;
		nr_parts = data->nr_parts;
	}

#ifdef CONFIG_MTD_OF_PARTS
	if (nr_parts <= 0 && spi->dev.of_node) {
		nr_parts = of_mtd_parse_partitions(&spi->dev,
						   spi->dev.of_node, &parts);
	}
#endif

	if (nr_parts > 0) {
		for (i = 0; i < nr_parts; i++) {
			DEBUG(MTD_DEBUG_LEVEL2, "partitions[%d] = "
			      "{.name = %s, .offset = 0x%llx, "
			      ".size = 0x%llx (%lldKiB) }\n",
			      i, parts[i].name,
			      (long long)parts[i].offset,
			      (long long)parts[i].size,
			      (long long)(parts[i].size >> 10));
		}
		flash->partitioned = 1;
	}

	return mtd_device_register(&flash->mtd, parts, nr_parts) == 1 ?
		-ENODEV : 0;  //注冊一個mtd設備 硬盤分區 初始化部分一個很重要的操作
}

這裡先重點關注一下write,就是驅動是如何把數據通過SPI總線寫入FLASH中





/*
 * Write an address range to the flash chip.  Data must be written in
 * FLASH_PAGESIZE chunks.  The address range may be any size provided
 * it is within the physical boundaries.
 */
static int m25p80_write(struct mtd_info *mtd, loff_t to, size_t len,
	size_t *retlen, const u_char *buf)
{
	struct m25p *flash = mtd_to_m25p(mtd);
	u32 page_offset, page_size;

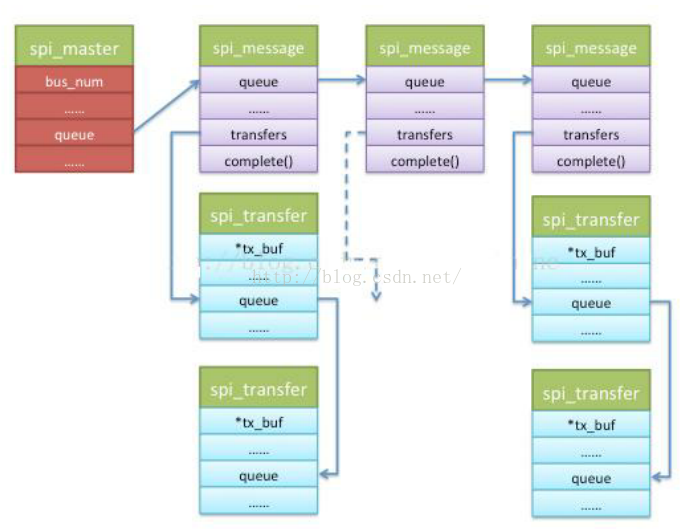

	struct spi_transfer t[2];//這個結構和下面一行的結構非常重要 可以看看結合上面的圖來看
	struct spi_message m;

	DEBUG(MTD_DEBUG_LEVEL2, "%s: %s %s 0x%08x, len %zd\n",
			dev_name(&flash->spi->dev), __func__, "to",
			(u32)to, len);

	*retlen = 0;

	/* sanity checks */
	if (!len)
		return(0);

	if (to + len > flash->mtd.size)
		return -EINVAL;

	spi_message_init(&m);//初始化
	memset(t, 0, (sizeof t));//數組清零

	t[0].tx_buf = flash->command;//命令和數據分開 其實都是數據
	t[0].len = m25p_cmdsz(flash);
	spi_message_add_tail(&t[0], &m);//掛到message中 鏈表 准確的說是隊列

	t[1].tx_buf = buf;
	spi_message_add_tail(&t[1], &m);//掛到message中

	mutex_lock(&flash->lock);

	/* Wait until finished previous write command. */
	if (wait_till_ready(flash)) {
		mutex_unlock(&flash->lock);
		return 1;
	}

	write_enable(flash);

	/* Set up the opcode in the write buffer. */
	flash->command[0] = OPCODE_PP;
	m25p_addr2cmd(flash, to, flash->command);

	page_offset = to & (flash->page_size - 1);

	/* do all the bytes fit onto one page? */
	if (page_offset + len <= flash->page_size) {
		t[1].len = len;

		spi_sync(flash->spi, &m);//把message提交給控制器處理 控制器在合適的時候發送到SPI總線上去

		*retlen = m.actual_length - m25p_cmdsz(flash);
	} else {
		u32 i;

		/* the size of data remaining on the first page */
		page_size = flash->page_size - page_offset;

		t[1].len = page_size;
		spi_sync(flash->spi, &m);

		*retlen = m.actual_length - m25p_cmdsz(flash);

		/* write everything in flash->page_size chunks */
		for (i = page_size; i < len; i += page_size) {
			page_size = len - i;
			if (page_size > flash->page_size)
				page_size = flash->page_size;

			/* write the next page to flash */
			m25p_addr2cmd(flash, to + i, flash->command);

			t[1].tx_buf = buf + i;
			t[1].len = page_size;

			wait_till_ready(flash);

			write_enable(flash);

			spi_sync(flash->spi, &m);

			*retlen += m.actual_length - m25p_cmdsz(flash);
		}
	}

	mutex_unlock(&flash->lock);

	return 0;
}
讀數據和上面的大概流程差不多!具體SPI從設備驅動和SPI控制器驅動又是通過什麼聯系起來的呢?



上面的的其中一張函數調用關系圖分析的比較詳細!

Copyright © Linux教程網 All Rights Reserved
