#define MY_RPC_PROG_NUM 0x38000010 //程序號 struct my_io_data_s //定義消息結構 { int mtype; int len; char data[1024]; }; typedef struct my_io_data_s my_io_data_t; program MY_RPC_PROG { version MY_RPC_VERS1 { int MY_RPCC(my_io_data_t) = 1; /* 過程號 = 1 */ } = 1; /* Version number = 1 */ version MY_RPC_VERS2 { my_io_data_t MY_RPCC(my_io_data_t) = 1; /* 過稱號 = 1 */ } = 2; /* Version number = 2 */ } = MY_RPC_PROG_NUM; /* Program number */這裡我創建了兩個版本,version1和version2,版本的數量是可以自己定制的,如果你需要一個的話定義一個即可。因為我打算定義一個版本用於SET的操作,一個用於GET操作,所以定義了兩個版本。 上面使用了RPC語言,我對以上幾個特殊名詞做一下解釋。 每個RPC過程由程序號、版本號和過程號來唯一確定。 RPC版本號:程序號標志一組相關的遠程過程,程序號的是有范圍的,我們需要在范圍內填寫程序號。 程序號范圍 簡述 0x00000000 - 0x1FFFFFFF 由Sun公司定義,提供特定服務 0x20000000 - 0x3FFFFFFF 由程序員自己定義,提供本地服務或用於調試 0x40000000 - 0x5FFFFFFF 用於短時間使用的程序,例如回調程序 0x60000000 - 0xFFFFFFFF 保留程序號 這裡我們使用的范圍當然是0x20000000 - 0x3FFFFFFF,我填的是0x38000010。 版本號:在version的大括號裡我們定義兩個我們將要使用的RPC調用函數的類型,比如: version 1:我們定義了int MY_RPCC(my_io_data_t),這表明我們以後PRC框架使用的RPC調用函數的函數類型那個將會是:int * my_rpcc_1(my_io_data_t *argp, CLIENT *clnt) version 2:my_io_data_t MY_RPCC(my_io_data_t) 則會變成 my_io_data_t * my_rpcc_2(my_io_data_t *argp, CLIENT *clnt) 所以我們可以根據我們需要的類型模仿編寫即可。 2.使用rpcgen指令生成以下幾個文件 使用rpcgen my.x生成系列文件(可以加參數-C,表示使用ANSI C) 執行該指令後,文件夾下將出現以下幾個文件。 my.h:
/* * Please do not edit this file. * It was generated using rpcgen. */ #ifndef _MY_H_RPCGEN #define _MY_H_RPCGEN #include <rpc/rpc.h> #ifdef __cplusplus extern "C" { #endif struct my_io_data_s { int mtype; int len; char data[1024]; }; typedef struct my_io_data_s my_io_data_s; typedef my_io_data_s my_io_data_t; #define MY_RPC_PROG 666 #define MY_RPC_VERS1 1 #if defined(__STDC__) || defined(__cplusplus) #define MY_RPCC 1 extern int * my_rpcc_1(my_io_data_t *, CLIENT *); extern int * my_rpcc_1_svc(my_io_data_t *, struct svc_req *); extern int my_rpc_prog_1_freeresult (SVCXPRT *, xdrproc_t, caddr_t); #else /* K&R C */ #define MY_RPCC 1 extern int * my_rpcc_1(); extern int * my_rpcc_1_svc(); extern int my_rpc_prog_1_freeresult (); #endif /* K&R C */ #define MY_RPC_VERS2 2 #if defined(__STDC__) || defined(__cplusplus) extern my_io_data_t * my_rpcc_2(my_io_data_t *, CLIENT *); extern my_io_data_t * my_rpcc_2_svc(my_io_data_t *, struct svc_req *); extern int my_rpc_prog_2_freeresult (SVCXPRT *, xdrproc_t, caddr_t); #else /* K&R C */ extern my_io_data_t * my_rpcc_2(); extern my_io_data_t * my_rpcc_2_svc(); extern int my_rpc_prog_2_freeresult (); #endif /* K&R C */ /* the xdr functions */ #if defined(__STDC__) || defined(__cplusplus) extern bool_t xdr_my_io_data_s (XDR *, my_io_data_s*); extern bool_t xdr_my_io_data_t (XDR *, my_io_data_t*); #else /* K&R C */ extern bool_t xdr_my_io_data_s (); extern bool_t xdr_my_io_data_t (); #endif /* K&R C */ #ifdef __cplusplus } #endif #endif /* !_MY_H_RPCGEN */View Code
my_clnt.c:
/* * Please do not edit this file. * It was generated using rpcgen. */ #include <memory.h> /* for memset */ #include "my.h" /* Default timeout can be changed using clnt_control() */ static struct timeval TIMEOUT = { 25, 0 }; int * my_rpcc_1(my_io_data_t *argp, CLIENT *clnt) { static int clnt_res; memset((char *)&clnt_res, 0, sizeof(clnt_res)); if (clnt_call (clnt, MY_RPCC, (xdrproc_t) xdr_my_io_data_t, (caddr_t) argp, (xdrproc_t) xdr_int, (caddr_t) &clnt_res, TIMEOUT) != RPC_SUCCESS) { return (NULL); } return (&clnt_res); } my_io_data_t * my_rpcc_2(my_io_data_t *argp, CLIENT *clnt) { static my_io_data_t clnt_res; memset((char *)&clnt_res, 0, sizeof(clnt_res)); if (clnt_call (clnt, MY_RPCC, (xdrproc_t) xdr_my_io_data_t, (caddr_t) argp, (xdrproc_t) xdr_my_io_data_t, (caddr_t) &clnt_res, TIMEOUT) != RPC_SUCCESS) { return (NULL); } return (&clnt_res); }View Code
my_svc.c
/* * Please do not edit this file. * It was generated using rpcgen. */ #include "my.h" #include <stdio.h> #include <stdlib.h> #include <rpc/pmap_clnt.h> #include <string.h> #include <memory.h> #include <sys/socket.h> #include <netinet/in.h> #ifndef SIG_PF #define SIG_PF void(*)(int) #endif static void my_rpc_prog_1(struct svc_req *rqstp, register SVCXPRT *transp) { union { my_io_data_t my_rpcc_1_arg; } argument; char *result; xdrproc_t _xdr_argument, _xdr_result; char *(*local)(char *, struct svc_req *); switch (rqstp->rq_proc) { case NULLPROC: (void) svc_sendreply (transp, (xdrproc_t) xdr_void, (char *)NULL); return; case MY_RPCC: _xdr_argument = (xdrproc_t) xdr_my_io_data_t; _xdr_result = (xdrproc_t) xdr_int; local = (char *(*)(char *, struct svc_req *)) my_rpcc_1_svc; break; default: svcerr_noproc (transp); return; } memset ((char *)&argument, 0, sizeof (argument)); if (!svc_getargs (transp, (xdrproc_t) _xdr_argument, (caddr_t) &argument)) { svcerr_decode (transp); return; } result = (*local)((char *)&argument, rqstp); if (result != NULL && !svc_sendreply(transp, (xdrproc_t) _xdr_result, result)) { svcerr_systemerr (transp); } if (!svc_freeargs (transp, (xdrproc_t) _xdr_argument, (caddr_t) &argument)) { fprintf (stderr, "%s", "unable to free arguments"); exit (1); } return; } static void my_rpc_prog_2(struct svc_req *rqstp, register SVCXPRT *transp) { union { my_io_data_t my_rpcc_2_arg; } argument; char *result; xdrproc_t _xdr_argument, _xdr_result; char *(*local)(char *, struct svc_req *); switch (rqstp->rq_proc) { case NULLPROC: (void) svc_sendreply (transp, (xdrproc_t) xdr_void, (char *)NULL); return; case MY_RPCC: _xdr_argument = (xdrproc_t) xdr_my_io_data_t; _xdr_result = (xdrproc_t) xdr_my_io_data_t; local = (char *(*)(char *, struct svc_req *)) my_rpcc_2_svc; break; default: svcerr_noproc (transp); return; } memset ((char *)&argument, 0, sizeof (argument)); if (!svc_getargs (transp, (xdrproc_t) _xdr_argument, (caddr_t) &argument)) { svcerr_decode (transp); return; } result = (*local)((char *)&argument, rqstp); if (result != NULL && !svc_sendreply(transp, (xdrproc_t) _xdr_result, result)) { svcerr_systemerr (transp); } if (!svc_freeargs (transp, (xdrproc_t) _xdr_argument, (caddr_t) &argument)) { fprintf (stderr, "%s", "unable to free arguments"); exit (1); } return; } int main (int argc, char **argv) { register SVCXPRT *transp; pmap_unset (MY_RPC_PROG, MY_RPC_VERS1); pmap_unset (MY_RPC_PROG, MY_RPC_VERS2); transp = svcudp_create(RPC_ANYSOCK); if (transp == NULL) { fprintf (stderr, "%s", "cannot create udp service."); exit(1); } if (!svc_register(transp, MY_RPC_PROG, MY_RPC_VERS1, my_rpc_prog_1, IPPROTO_UDP)) { fprintf (stderr, "%s", "unable to register (MY_RPC_PROG, MY_RPC_VERS1, udp)."); exit(1); } if (!svc_register(transp, MY_RPC_PROG, MY_RPC_VERS2, my_rpc_prog_2, IPPROTO_UDP)) { fprintf (stderr, "%s", "unable to register (MY_RPC_PROG, MY_RPC_VERS2, udp)."); exit(1); } transp = svctcp_create(RPC_ANYSOCK, 0, 0); if (transp == NULL) { fprintf (stderr, "%s", "cannot create tcp service."); exit(1); } if (!svc_register(transp, MY_RPC_PROG, MY_RPC_VERS1, my_rpc_prog_1, IPPROTO_TCP)) { fprintf (stderr, "%s", "unable to register (MY_RPC_PROG, MY_RPC_VERS1, tcp)."); exit(1); } if (!svc_register(transp, MY_RPC_PROG, MY_RPC_VERS2, my_rpc_prog_2, IPPROTO_TCP)) { fprintf (stderr, "%s", "unable to register (MY_RPC_PROG, MY_RPC_VERS2, tcp)."); exit(1); } svc_run (); fprintf (stderr, "%s", "svc_run returned"); exit (1); /* NOTREACHED */ }View Code
my_xdr.c
/* * Please do not edit this file. * It was generated using rpcgen. */ #include "my.h" bool_t xdr_my_io_data_s (XDR *xdrs, my_io_data_s *objp) { register int32_t *buf; int i; if (!xdr_int (xdrs, &objp->mtype)) return FALSE; if (!xdr_int (xdrs, &objp->len)) return FALSE; if (!xdr_vector (xdrs, (char *)objp->data, 1024, sizeof (char), (xdrproc_t) xdr_char)) return FALSE; return TRUE; } bool_t xdr_my_io_data_t (XDR *xdrs, my_io_data_t *objp) { register int32_t *buf; if (!xdr_my_io_data_s (xdrs, objp)) return FALSE; return TRUE; }View Code
3.rpcgen -Sc -o my_client.c my.x 生成my_client.c 使用該指令後我們就生成了客戶端.c文件,這個文件很重要,因為以後我們做業務開發就在這裡做,我們的調用都會從這裡開始。 my_client.c:
/* * This is sample code generated by rpcgen. * These are only templates and you can use them * as a guideline for developing your own functions. */ #include "my.h" void my_rpc_prog_1(char *host) { CLIENT *clnt; int *result_1; my_io_data_t my_rpcc_1_arg; #ifndef DEBUG clnt = clnt_create (host, MY_RPC_PROG, MY_RPC_VERS1, "udp"); if (clnt == NULL) { clnt_pcreateerror (host); exit (1); } #endif /* DEBUG */ result_1 = my_rpcc_1(&my_rpcc_1_arg, clnt); if (result_1 == (int *) NULL) { clnt_perror (clnt, "call failed"); } #ifndef DEBUG clnt_destroy (clnt); #endif /* DEBUG */ } void my_rpc_prog_2(char *host) { CLIENT *clnt; my_io_data_t *result_1; my_io_data_t my_rpcc_2_arg; #ifndef DEBUG clnt = clnt_create (host, MY_RPC_PROG, MY_RPC_VERS2, "udp"); if (clnt == NULL) { clnt_pcreateerror (host); exit (1); } #endif /* DEBUG */ result_1 = my_rpcc_2(&my_rpcc_2_arg, clnt); if (result_1 == (my_io_data_t *) NULL) { clnt_perror (clnt, "call failed"); } #ifndef DEBUG clnt_destroy (clnt); #endif /* DEBUG */ } int main (int argc, char *argv[]) { char *host; if (argc < 2) { printf ("usage: %s server_host\n", argv[0]); exit (1); } host = argv[1]; my_rpc_prog_1 (host); my_rpc_prog_2 (host); exit (0); }View Code 現在我們就可以在該文件編寫客戶端的代碼了。 5.rpcgen -Ss -o my_server.c my.x生成文件my_server.c 使用該指令後我們就生成了服務器.c文件,這個文件很重要,因為以後我們做業務開發就在這裡做,我們將在這裡編寫處理客戶端請求的代碼。 my_server.c:
/* * This is sample code generated by rpcgen. * These are only templates and you can use them * as a guideline for developing your own functions. */ #include "my.h" int * my_rpcc_1_svc(my_io_data_t *argp, struct svc_req *rqstp) { static int result; /* * insert server code here */ return &result; } my_io_data_t * my_rpcc_2_svc(my_io_data_t *argp, struct svc_req *rqstp) { static my_io_data_t result; /* * insert server code here */ return &result; }View Code
6.在my_server.c和my_client.c添加測試代碼 所有利用rpcgen生成的文件都已經生成完畢,接下來我們需要添加測試代碼來驗證該RPC骨架是否正常工作。 my_client.c:
/* * This is sample code generated by rpcgen. * These are only templates and you can use them * as a guideline for developing your own functions. */ #include "my.h" void my_rpc_prog_1(char *host) { CLIENT *clnt; int *result_1; my_io_data_t my_rpcc_1_arg; #ifndef DEBUG clnt = clnt_create (host, MY_RPC_PROG, MY_RPC_VERS1, "udp"); if (clnt == NULL) { clnt_pcreateerror (host); exit (1); } #endif /* DEBUG */ result_1 = my_rpcc_1(&my_rpcc_1_arg, clnt); if (result_1 == (int *) NULL) { clnt_perror (clnt, "call failed"); } #ifndef DEBUG clnt_destroy (clnt); #endif /* DEBUG */ } void my_rpc_prog_2(char *host) { CLIENT *clnt; my_io_data_t *result_1; my_io_data_t my_rpcc_2_arg; #ifndef DEBUG clnt = clnt_create (host, MY_RPC_PROG, MY_RPC_VERS2, "udp"); if (clnt == NULL) { clnt_pcreateerror (host); exit (1); } #endif /* DEBUG */ my_rpcc_2_arg.mtype = 3; my_rpcc_2_arg.len = 18; result_1 = my_rpcc_2(&my_rpcc_2_arg, clnt); if (result_1 == (my_io_data_t *) NULL) { clnt_perror (clnt, "call failed"); } fprintf(stderr,"recv msg from server! mtype:%d len:%d \n",result_1->mtype,result_1->len); #ifndef DEBUG clnt_destroy (clnt); #endif /* DEBUG */ } int main (int argc, char *argv[]) { char *host; if (argc < 2) { printf ("usage: %s server_host\n", argv[0]); exit (1); } host = argv[1]; //my_rpc_prog_1 (host); my_rpc_prog_2 (host); exit (0); }View Code
值得注意的是,我們client使用的是UDP協議,當然我們用戶也可以根據自己需要選用TCP協議進行開發。
my_server.c

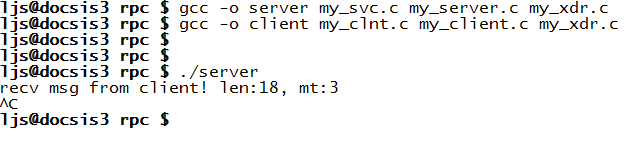

/* * This is sample code generated by rpcgen. * These are only templates and you can use them * as a guideline for developing your own functions. */ #include "my.h" int * my_rpcc_1_svc(my_io_data_t *argp, struct svc_req *rqstp) { static int result; /* * insert server code here */ return &result; } my_io_data_t * my_rpcc_2_svc(my_io_data_t *argp, struct svc_req *rqstp) { static my_io_data_t result; /* * insert server code here */ printf("recv msg from client! len:%d, mt:%d \n",argp->len,argp->mtype); result.mtype = 33; result.len = 12; return &result; }View Code 7.測試現象 編譯這client和server gcc -o client my_clnt.c my_client.c my_xdr.c gcc -o server my_svc.c my_server.c my_xdr.c 我在主機172.0.5.183運行server程序,在172.0.5.183運行client程序,測試現象如下: server端
client端
以上測試已經證明了我們創建的RPC是可以正常通信的,那我們繼續在此框架下完善代碼,構建出可供業務開發的分布式系統的系統框架。 二、完善分布式系統的系統框架 以上的通信骨架過於簡單了,那我們就動動手加點代碼,設計一個簡單的分布式計算系統。這個所謂的分布式計算系統很簡單,就是我們一個客戶端向一個服務器端提出計算請求,服務器端將計算得出的結果返回給客戶端。 本次程序是基於本文第一部分的骨架搭建的,大多數文件不需要修改,需要修改的文件如下:typedef struct my_msg_hdr_s { int mtype; int len; }my_msg_hdr_t; typedef struct my_msg_s { my_msg_hdr_t msg_hdr; int para1; int para2; int result; }my_msg_t;然後我們先改變一下我們的客戶端程序, my_rpc_prog_1主要負責服務器的設置,比如在該程序裡,此函數就用於設置服務器的開關,所以這個函數只需要把消息發給服務器端就可以了,不需要服務器返回數據給它,所以使用了int的返回值。 而my_rpc_prog_2則需要給它返回數據結果的,所以該函數使用了my_io_data_t *作返回值。
/* * This is sample code generated by rpcgen. * These are only templates and you can use them * as a guideline for developing your own functions. */ #include "my.h" #include "rpc_msg.h" int my_rpc_prog_1(char *host, my_io_data_t* in_msg) { CLIENT *clnt; int *result_1; #ifndef DEBUG clnt = clnt_create (host, MY_RPC_PROG, MY_RPC_VERS1, "udp"); if (clnt == NULL) { printf("Fail to create rpc client1!\n"); return -1; } #endif /* DEBUG */ result_1 = my_rpcc_1(in_msg, clnt); if (result_1 == (int *) NULL) { clnt_perror (clnt, "call failed"); return -1; } return 0; } my_io_data_t * my_rpc_prog_2(char *host, my_io_data_t* in_msg) { CLIENT *clnt; my_io_data_t *result_1 = NULL; #ifndef DEBUG clnt = clnt_create (host, MY_RPC_PROG, MY_RPC_VERS2, "udp"); if (clnt == NULL) { printf("Fail to create rpc client1!\n"); return NULL; } #endif /* DEBUG */ result_1 = my_rpcc_2(in_msg, clnt); if (result_1 == (my_io_data_t *) NULL) { clnt_perror (clnt, "call failed"); return NULL; } return result_1; } void get_compute_result(char *host, int type, int para1, int para2) { my_io_data_t in_msg; my_msg_t* rsp; my_io_data_t* out_msg; my_msg_t* req = (my_msg_t*)&in_msg; memset(&in_msg, 0, sizeof(in_msg)); req->msg_hdr.mtype = type; req->msg_hdr.len = sizeof(in_msg) - sizeof(my_msg_hdr_t); req->para1 = para1; req->para2 = para2; out_msg = my_rpc_prog_2(host, &in_msg); rsp = (my_msg_t*)out_msg; if(rsp == NULL) { printf("RPC call fail!\n"); return; } printf("compute result is %d\n",rsp->result); } void server_switch(char *host, int type) { my_io_data_t msg; my_msg_t* in_msg = (my_msg_t*)&msg; memset(&msg, 0, sizeof(msg)); in_msg->msg_hdr.mtype = type; in_msg->msg_hdr.len = sizeof(msg) - sizeof(my_msg_hdr_t); if(my_rpc_prog_1(host, &msg)) { printf("enable server fail!\n"); } printf("Configure server successfully!\n"); } int main (int argc, char *argv[]) { server_switch(SERVER_IP, RPC_enable); //server start sleep(1); get_compute_result(SERVER_IP, RPC_ADD, 6, 3); sleep(1); get_compute_result(SERVER_IP, RPC_SUB, 6, 3); sleep(1); get_compute_result(SERVER_IP, RPC_MUL, 6, 3); sleep(1); get_compute_result(SERVER_IP, RPC_DIV, 6, 3); sleep(1); server_switch(SERVER_IP, RPC_disable); //server close return 0; }當然改了以上的兩個函數,我們當然也需要在my_clnt.c和my.h作出函數聲明的修改。 現在看看server端怎麼處理這些請求的。 my_server.c
/* * This is sample code generated by rpcgen. * These are only templates and you can use them * as a guideline for developing your own functions. */ #include "my.h" #include "rpc_msg.h" int* my_rpcc_1_svc(my_io_data_t *argp, struct svc_req *rqstp) { static int result; switch(argp->mtype) { case RPC_enable: printf("server start!\n"); break; case RPC_disable: printf("server close!\n"); break; default: break; } return &result; } my_io_data_t* my_rpcc_2_svc(my_io_data_t *argp, struct svc_req *rqstp) { static my_io_data_t result; my_msg_t* out = (my_msg_t*)&result; my_msg_t* in = (my_msg_t*)argp; switch(in->msg_hdr.mtype) { case RPC_ADD: out->result = in->para1 + in->para2; break; case RPC_SUB: out->result = in->para1 - in->para2; break; case RPC_MUL: out->result = in->para1 * in->para2; break; case RPC_DIV: out->result = in->para1/in->para2; break; default: break; } return &result; }
附上有修改的文件 rpc_msg.h
#define SERVER_IP "172.0.5.183" enum RPC_REQ_TYPE_1 { RPC_enable, RPC_disable, }; enum RPC_REQ_TYPE_2 { RPC_ADD, RPC_SUB, RPC_MUL, RPC_DIV, }; typedef struct my_msg_hdr_s { int mtype; int len; }my_msg_hdr_t; typedef struct my_msg_s { my_msg_hdr_t msg_hdr; int para1; int para2; int result; }my_msg_t;View Code
my_clnt.c:
/* * Please do not edit this file. * It was generated using rpcgen. */ #include <memory.h> /* for memset */ #include "my.h" /* Default timeout can be changed using clnt_control() */ static struct timeval TIMEOUT = { 25, 0 }; int * my_rpcc_1(my_io_data_t *argp, CLIENT *clnt) { static int clnt_res; memset((char *)&clnt_res, 0, sizeof(clnt_res)); if (clnt_call (clnt, MY_RPCC, (xdrproc_t) xdr_my_io_data_t, (caddr_t) argp, (xdrproc_t) xdr_int, (caddr_t) &clnt_res, TIMEOUT) != RPC_SUCCESS) { return (NULL); } return (&clnt_res); } my_io_data_t * my_rpcc_2(my_io_data_t *argp, CLIENT *clnt) { static my_io_data_t clnt_res; memset((char *)&clnt_res, 0, sizeof(clnt_res)); if (clnt_call (clnt, MY_RPCC, (xdrproc_t) xdr_my_io_data_t, (caddr_t) argp, (xdrproc_t) xdr_my_io_data_t, (caddr_t) &clnt_res, TIMEOUT) != RPC_SUCCESS) { return (NULL); } return (&clnt_res); }View Code
my.h
/* * Please do not edit this file. * It was generated using rpcgen. */ #ifndef _MY_H_RPCGEN #define _MY_H_RPCGEN #include <rpc/rpc.h> #ifdef __cplusplus extern "C" { #endif struct my_io_data_s { int mtype; int len; char data[1024]; }; typedef struct my_io_data_s my_io_data_s; typedef my_io_data_s my_io_data_t; #define MY_RPC_PROG 666 #define MY_RPC_VERS1 1 #if defined(__STDC__) || defined(__cplusplus) #define MY_RPCC 1 extern int * my_rpcc_1(my_io_data_t *, CLIENT *); extern int * my_rpcc_1_svc(my_io_data_t *, struct svc_req *); extern int my_rpc_prog_1_freeresult (SVCXPRT *, xdrproc_t, caddr_t); #else /* K&R C */ #define MY_RPCC 1 extern int * my_rpcc_1(); extern int * my_rpcc_1_svc(); extern int my_rpc_prog_1_freeresult (); #endif /* K&R C */ #define MY_RPC_VERS2 2 #if defined(__STDC__) || defined(__cplusplus) extern my_io_data_t * my_rpcc_2(my_io_data_t *, CLIENT *); extern my_io_data_t * my_rpcc_2_svc(my_io_data_t *, struct svc_req *); extern int my_rpc_prog_2_freeresult (SVCXPRT *, xdrproc_t, caddr_t); #else /* K&R C */ extern my_io_data_t * my_rpcc_2(); extern my_io_data_t * my_rpcc_2_svc(); extern int my_rpc_prog_2_freeresult (); #endif /* K&R C */ /* the xdr functions */ #if defined(__STDC__) || defined(__cplusplus) extern bool_t xdr_my_io_data_s (XDR *, my_io_data_s*); extern bool_t xdr_my_io_data_t (XDR *, my_io_data_t*); #else /* K&R C */ extern bool_t xdr_my_io_data_s (); extern bool_t xdr_my_io_data_t (); #endif /* K&R C */ #ifdef __cplusplus } #endif #endif /* !_MY_H_RPCGEN */View Code

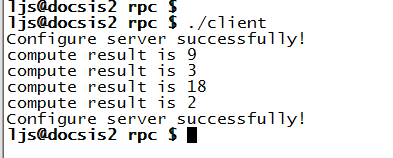

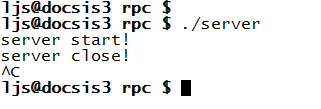

實驗結果: 編譯這client和server gcc -o client my_clnt.c my_client.c my_xdr.c gcc -o server my_svc.c my_server.c my_xdr.c 首先在主機172.0.5.183上運行server程序,然後在主機172.0.5.182運行client程序 同時觀察兩個主機的輸出情況:
實驗證明,client的RPC調用是成功的,計算結果跟我們預計的也一樣,我們的demo設計完成。 後記: 現在網上介紹RPC的文章很多,但教你如何在Linux下搭建RPC框架的技術文章是很少的,僅有的幾篇文章介紹得也是很簡單很模糊,我也因此走了很多彎路,自己探索很多花了很多時間才搭建起來這麼一個RPC框架。希望本文幫助到那些想在Linux下搭建RPC框架卻不得入門的朋友。 參考資料: 《Unix網絡編程卷二》 《Linux C高級程序員指南》 《rpcgen_mannual》
