網卡驅動設計---架構分析加回環網卡驅動設計(網卡驅動上)

網卡驅動架構分析:

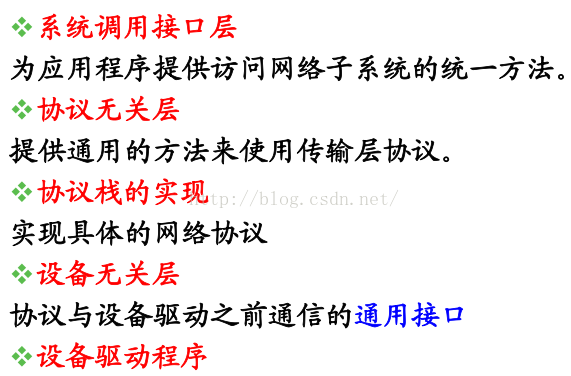

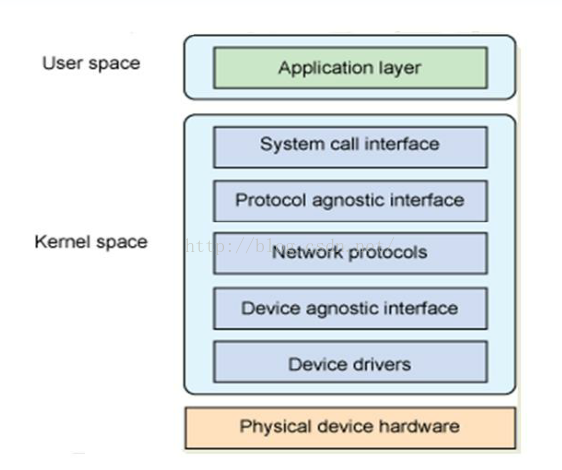

1. Linux網絡子系統



\

\

2. 重要數據結構

\

\

\

總結一下三個重要的數據結構:

2.1. net_device

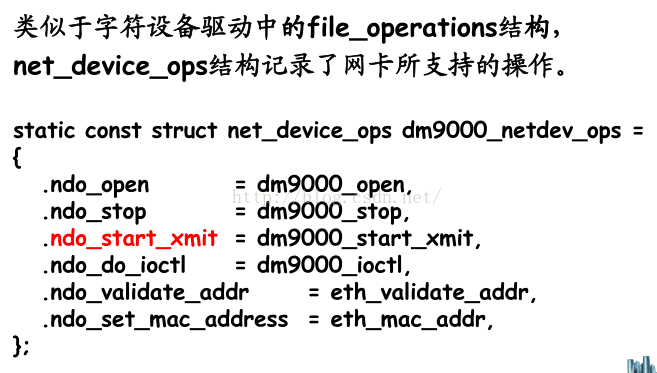

2.2. net_device_ops

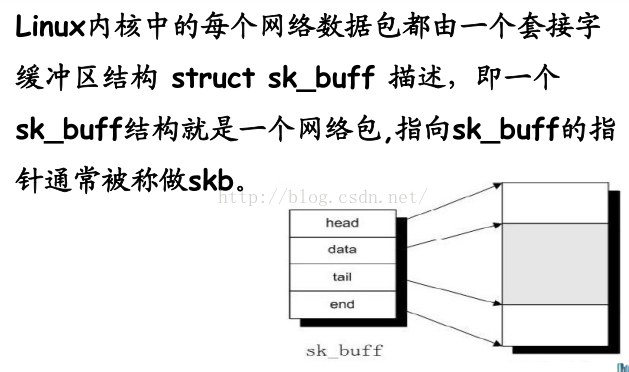

2.3. sk_buff

3. 網卡驅動架構分析

CS8900.c //早期2410使用的網卡芯片

3.1. 網卡初始化

首先找到驅動程序的入口:

早期的驅動入口並不是module_init()函數,而是init_module,所以找到這個函數

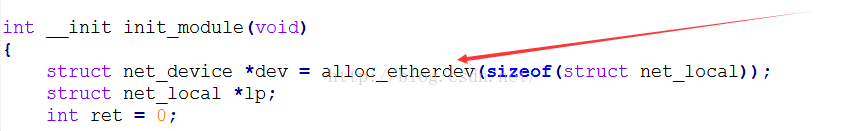

int __init init_module(void)
{
	struct net_device *dev = alloc_etherdev(sizeof(struct net_local));
	struct net_local *lp;
	int ret = 0;

#if DEBUGGING
	net_debug = debug;
#else
	debug = 0;
#endif
	if (!dev)
		return -ENOMEM;

	dev->irq = irq;
	dev->base_addr = io;
	lp = netdev_priv(dev);

#if ALLOW_DMA
	if (use_dma) {
		lp->use_dma = use_dma;
		lp->dma = dma;
		lp->dmasize = dmasize;
	}
#endif

	spin_lock_init(&lp->lock);

        /* boy, they'd better get these right */
        if (!strcmp(media, "rj45"))
		lp->adapter_cnf = A_CNF_MEDIA_10B_T | A_CNF_10B_T;
	else if (!strcmp(media, "aui"))
		lp->adapter_cnf = A_CNF_MEDIA_AUI   | A_CNF_AUI;
	else if (!strcmp(media, "bnc"))
		lp->adapter_cnf = A_CNF_MEDIA_10B_2 | A_CNF_10B_2;
	else
		lp->adapter_cnf = A_CNF_MEDIA_10B_T | A_CNF_10B_T;

        if (duplex==-1)
		lp->auto_neg_cnf = AUTO_NEG_ENABLE;

        if (io == 0) {
                printk(KERN_ERR "cs89x0.c: Module autoprobing not allowed.\n");
                printk(KERN_ERR "cs89x0.c: Append io=0xNNN\n");
                ret = -EPERM;
		goto out;
        } else if (io <= 0x1ff) {
		ret = -ENXIO;
		goto out;
	}
\

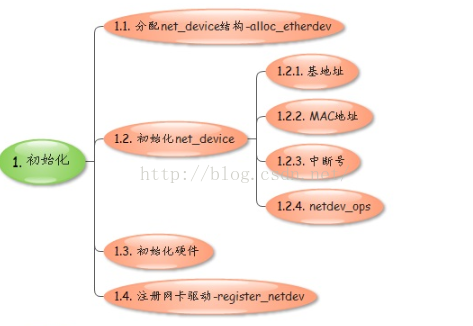

第一步:分配net_device結構,

第二步:初始化net_device結構,



       dev->irq = irq;//分配中斷號
	dev->base_addr = io;//設備基地址
	lp = netdev_priv(dev);
第三步:





ret = cs89x0_probe1(dev, io, 1);\\這一步其實也是初始化硬件的!還有一部分是對device結構進行一些初始化
這個函數比較長就不貼代碼了,其中一行比較重要:



dev->netdev_ops = &net_ops; \\這個是對netdev_ops成員進行初始化

\

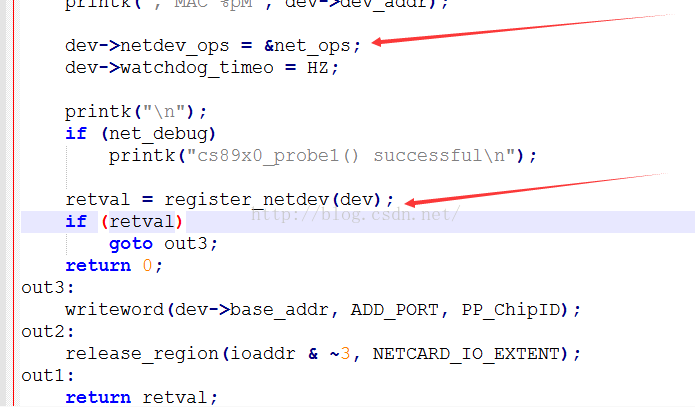

最後一步注冊網卡驅動!上圖中第二個紅色箭頭所指向的地方!

總結一下上圖:

\



3.2. 網卡數據的發送

這個結合前面的經驗,找到網卡的函數操作集結構:

\

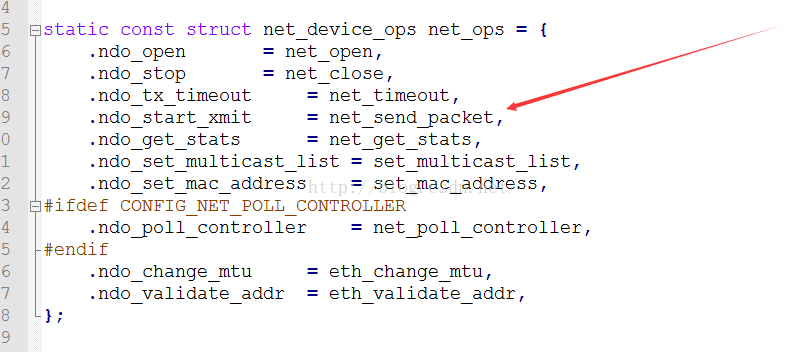

可以看到這個成員函數的名字叫做:net_send_packet



static netdev_tx_t net_send_packet(struct sk_buff *skb,struct net_device *dev)
{
	struct net_local *lp = netdev_priv(dev);
	unsigned long flags;

	if (net_debug > 3) {
		printk("%s: sent %d byte packet of type %x\n",
			dev->name, skb->len,
			(skb->data[ETH_ALEN+ETH_ALEN] << 8) | skb->data[ETH_ALEN+ETH_ALEN+1]);
	}

	/* keep the upload from being interrupted, since we
                  ask the chip to start transmitting before the
                  whole packet has been completely uploaded. */

	spin_lock_irqsave(&lp->lock, flags);
	netif_stop_queue(dev);//1. 網卡驅動在向上層發送數據的時候暫時停止接收上層發來的數據

	/* initiate a transmit sequence */
	writeword(dev->base_addr, TX_CMD_PORT, lp->send_cmd);//2. 將skb中的數據寫入寄存器
	writeword(dev->base_addr, TX_LEN_PORT, skb->len);

	/* Test to see if the chip has allocated memory for the packet */
	if ((readreg(dev, PP_BusST) & READY_FOR_TX_NOW) == 0) {
		/*
		 * Gasp!  It hasn't.  But that shouldn't happen since
		 * we're waiting for TxOk, so return 1 and requeue this packet.
		 */

		spin_unlock_irqrestore(&lp->lock, flags);
		if (net_debug) printk("cs89x0: Tx buffer not free!\n");
		return NETDEV_TX_BUSY;
	}
	/* Write the contents of the packet */
	writewords(dev->base_addr, TX_FRAME_PORT,skb->data,(skb->len+1) >>1);
	spin_unlock_irqrestore(&lp->lock, flags);
	dev->stats.tx_bytes += skb->len;
	dev_kfree_skb (skb);//3. 釋放skb結構

        //發送數據完後,網卡會產生一個中斷
	return NETDEV_TX_OK;
}

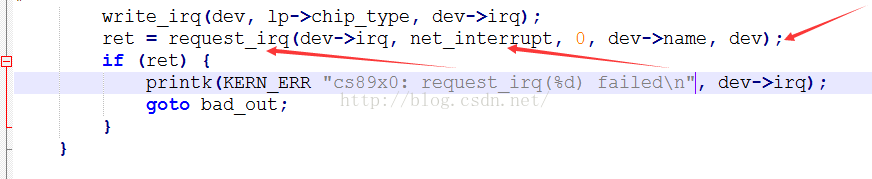

產生一個中斷這個可以查查request_irq函數,在這個函數被調用的地方可以看到這樣的一行代碼:





ret = request_irq(dev->irq, net_interrupt, 0, dev->name, dev);

\

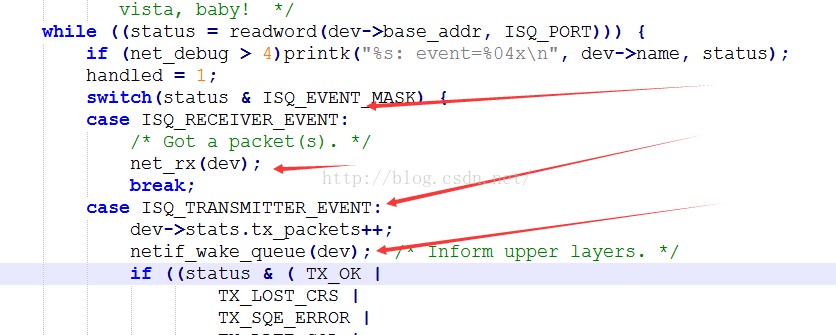

可以看到這裡調用了net_initerupt函數,網卡發送和接收中斷!

\

一個是發送中斷,一個是接收中斷,

netif_wake_queue(dev);/* Inform upper layers. */ // 這行代碼表示在發送中斷處理過程中,通知上層協議,可以再次向網卡傳輸數據。

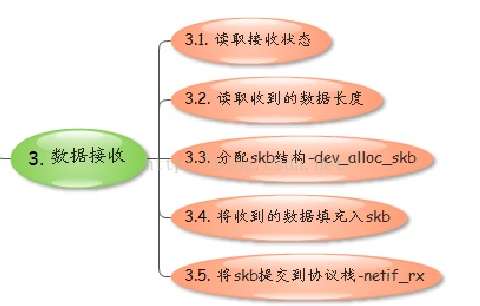

3.3. 網卡數據的接收

網卡數據的接收入口是在中斷中完成的,這個是從中斷函數中可以看到net_interrupt

\

接收中斷處理函數net_rx(dev)



/* We have a good packet(s), get it/them out of the buffers. */
static void
net_rx(struct net_device *dev)
{
	struct sk_buff *skb;
	int status, length;

	int ioaddr = dev->base_addr;
	status = readword(ioaddr, RX_FRAME_PORT);//讀取寄存器,網卡接收狀態
	length = readword(ioaddr, RX_FRAME_PORT);//網卡接收字節長度

	if ((status & RX_OK) == 0) {
		count_rx_errors(status, dev);
		return;
	}

	/* Malloc up new buffer. */
	skb = dev_alloc_skb(length + 2);//分配skb結構 +2字節空間是為頭預留的
	if (skb == NULL) {
#if 0		/* Again, this seems a cruel thing to do */
		printk(KERN_WARNING "%s: Memory squeeze, dropping packet.\n", dev->name);
#endif
		dev->stats.rx_dropped++;
		return;
	}
	skb_reserve(skb, 2);	/* longword align L3 header */

	readwords(ioaddr, RX_FRAME_PORT, skb_put(skb, length), length >> 1);//將收到的數據填充入skb
	if (length & 1)
		skb->data[length-1] = readword(ioaddr, RX_FRAME_PORT);

	if (net_debug > 3) {
		printk(	"%s: received %d byte packet of type %x\n",
			dev->name, length,
			(skb->data[ETH_ALEN+ETH_ALEN] << 8) | skb->data[ETH_ALEN+ETH_ALEN+1]);
	}

        skb->protocol=eth_type_trans(skb,dev);
	netif_rx(skb);//將skb提交到協議棧
	dev->stats.rx_packets++;
	dev->stats.rx_bytes += length;
}
\



回環網卡驅動設計:

\

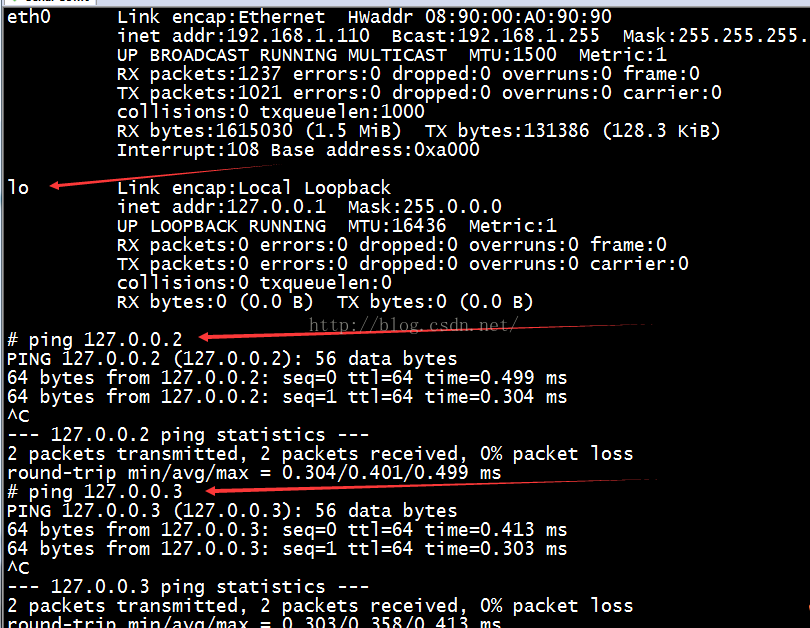

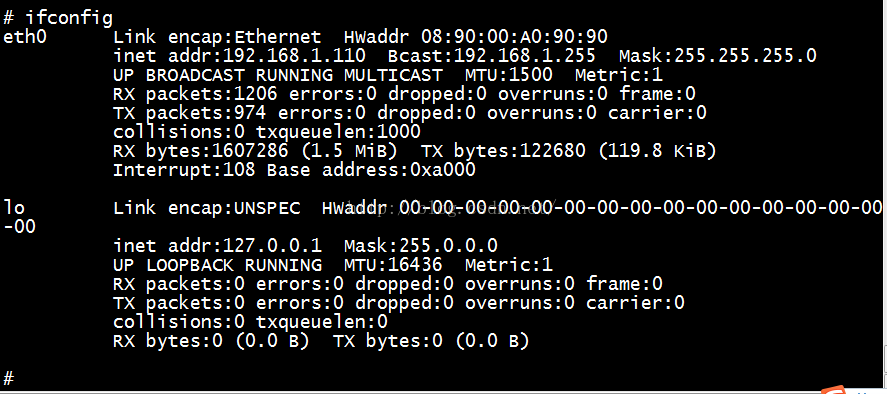

使用ifocnfig,可以看到除了eth0還有一個l0, eth0代表的是一個物理網卡,l0代表的就是回環網卡,從上面的打印信息可以看到l0的IP地址是127.0.0.1,可以看到當ping 127.0.0.x的時候能ping通,其實l0就是網卡的tx和rx在軟件層的短接!所以才叫做回環網卡!

其實內核代碼中也可以找到回環網卡的驅動!Lookback.c

這個文件中的代碼部分其實不是內核模塊,而是由其它部分的調用的!

刪掉內核代碼中的原有的loopback.c,結合上面的的分析和原有源碼的分析重寫編寫loopback.c,



#include
#include
#include
#include
#include
#include
#include
#include
#include 	/* For the statistics structure. */


unsigned long bytes = 0;
unsigned long packets = 0;//skb包


static int loopback_xmit(struct sk_buff *skb, struct net_device *dev)//數據發送
{

	skb->protocol = eth_type_trans(skb,dev);//表明skb包的協議 以太網協議


	bytes += skb->len;//發送的數據量
	packets++; //發送的數據包也要加一

	netif_rx(skb);//將skb向回送, 回環網卡驅動就是這實現的,這是很關鍵的一步

	return 0;
}

static struct net_device_stats *loopback_get_stats(struct net_device *dev)//獲取網卡狀態
{
	struct net_device_stats *stats = &dev->stats;//首先把state這個成員取出來

	stats->rx_packets = packets;//表示網卡收到了多少個包
	stats->tx_packets = packets;//表示網卡發送了多少個包
	stats->rx_bytes = bytes;//表示網卡接收到了多少個字節
	stats->tx_bytes = bytes;
	return stats;//返回狀態
}

static const struct net_device_ops loopback_ops = {//定義一個net_device_ops 結構
	.ndo_start_xmit= loopback_xmit,//發送指針
	.ndo_get_stats = loopback_get_stats,//獲取網卡狀態的函數
};


static void loopback_setup(struct net_device *dev)//初始化設置操作
{
	dev->mtu	= (16 * 1024) + 20 + 20 + 12;//網卡最大接收包的尺寸:16K + TCP頭 + IP頭 + 以太網頭
	dev->flags		= IFF_LOOPBACK;//回環網卡專有標志 這是一個宏內核代碼可查
	dev->header_ops		= ð_header_ops;//這個是網絡包的函數操作集,內核可以看這個成員的數據結構
	dev->netdev_ops		= &loopback_ops;//網卡所支持操作的集合

}


static __net_init int loopback_net_init(struct net *net)
{
	struct net_device *dev;
	int err;
	err = -ENOMEM;
	dev = alloc_netdev(0, "lo", loopback_setup);//分配一個net_device結構,loopback為一個初始化函數
	if (!dev)
		goto out;

	err = register_netdev(dev);//注冊網卡驅動程序
	if (err)
		goto out_free_netdev;

	net->loopback_dev = dev;
	return 0;


out_free_netdev:
	free_netdev(dev);
out:
	if (net == &init_net)
		panic("loopback: Failed to register netdevice: %d\n", err);
	return err;
}

static __net_exit void loopback_net_exit(struct net *net)
{
	struct net_device *dev = net->loopback_dev;

	unregister_netdev(dev);//注銷網卡驅動程序
}

/* Registered in net/core/dev.c */
struct pernet_operations __net_initdata loopback_net_ops = {
       .init = loopback_net_init,
       .exit = loopback_net_exit,
};

保存,然後重新編譯內核,下載到開發板看運行效果!



\

上面的回環網卡驅動有點問題,ping不同!

這是能ping通的內核自帶的源碼:



#include
#include
#include
#include
#include
#include
#include
#include
#include
#include
#include
#include

#include
#include
#include

#include
#include
#include
#include
#include
#include
#include
#include 	/* For the statistics structure. */
#include 	/* For ARPHRD_ETHER */
#include
#include
#include
#include
#include

struct pcpu_lstats {
	u64			packets;
	u64			bytes;
	struct u64_stats_sync	syncp;
};

/*
 * The higher levels take care of making this non-reentrant (it's
 * called with bh's disabled).
 */
static netdev_tx_t loopback_xmit(struct sk_buff *skb,
				 struct net_device *dev)
{
	struct pcpu_lstats *lb_stats;
	int len;

	skb_orphan(skb);

	skb->protocol = eth_type_trans(skb, dev);

	/* it's OK to use per_cpu_ptr() because BHs are off */
	lb_stats = this_cpu_ptr(dev->lstats);

	len = skb->len;
	if (likely(netif_rx(skb) == NET_RX_SUCCESS)) {
		u64_stats_update_begin(&lb_stats->syncp);
		lb_stats->bytes += len;
		lb_stats->packets++;
		u64_stats_update_end(&lb_stats->syncp);
	}

	return NETDEV_TX_OK;
}

static struct rtnl_link_stats64 *loopback_get_stats64(struct net_device *dev,
						      struct rtnl_link_stats64 *stats)
{
	u64 bytes = 0;
	u64 packets = 0;
	int i;

	for_each_possible_cpu(i) {
		const struct pcpu_lstats *lb_stats;
		u64 tbytes, tpackets;
		unsigned int start;

		lb_stats = per_cpu_ptr(dev->lstats, i);
		do {
			start = u64_stats_fetch_begin(&lb_stats->syncp);
			tbytes = lb_stats->bytes;
			tpackets = lb_stats->packets;
		} while (u64_stats_fetch_retry(&lb_stats->syncp, start));
		bytes   += tbytes;
		packets += tpackets;
	}
	stats->rx_packets = packets;
	stats->tx_packets = packets;
	stats->rx_bytes   = bytes;
	stats->tx_bytes   = bytes;
	return stats;
}

static u32 always_on(struct net_device *dev)
{
	return 1;
}

static const struct ethtool_ops loopback_ethtool_ops = {
	.get_link		= always_on,
};

static int loopback_dev_init(struct net_device *dev)
{
	dev->lstats = alloc_percpu(struct pcpu_lstats);
	if (!dev->lstats)
		return -ENOMEM;

	return 0;
}

static void loopback_dev_free(struct net_device *dev)
{
	free_percpu(dev->lstats);
	free_netdev(dev);
}

static const struct net_device_ops loopback_ops = {
	.ndo_init      = loopback_dev_init,
	.ndo_start_xmit= loopback_xmit,
	.ndo_get_stats64 = loopback_get_stats64,
};

/*
 * The loopback device is special. There is only one instance
 * per network namespace.
 */
static void loopback_setup(struct net_device *dev)
{
	dev->mtu		= (16 * 1024) + 20 + 20 + 12;
	dev->hard_header_len	= ETH_HLEN;	/* 14	*/
	dev->addr_len		= ETH_ALEN;	/* 6	*/
	dev->tx_queue_len	= 0;
	dev->type		= ARPHRD_LOOPBACK;	/* 0x0001*/
	dev->flags		= IFF_LOOPBACK;
	dev->priv_flags	       &= ~IFF_XMIT_DST_RELEASE;
	dev->hw_features	= NETIF_F_ALL_TSO | NETIF_F_UFO;
	dev->features 		= NETIF_F_SG | NETIF_F_FRAGLIST
		| NETIF_F_ALL_TSO
		| NETIF_F_UFO
		| NETIF_F_NO_CSUM
		| NETIF_F_RXCSUM
		| NETIF_F_HIGHDMA
		| NETIF_F_LLTX
		| NETIF_F_NETNS_LOCAL
		| NETIF_F_VLAN_CHALLENGED
		| NETIF_F_LOOPBACK;
	dev->ethtool_ops	= &loopback_ethtool_ops;
	dev->header_ops		= ð_header_ops;
	dev->netdev_ops		= &loopback_ops;
	dev->destructor		= loopback_dev_free;
}

/* Setup and register the loopback device. */
static __net_init int loopback_net_init(struct net *net)
{
	struct net_device *dev;
	int err;

	err = -ENOMEM;
	dev = alloc_netdev(0, "lo", loopback_setup);
	if (!dev)
		goto out;

	dev_net_set(dev, net);
	err = register_netdev(dev);
	if (err)
		goto out_free_netdev;

	net->loopback_dev = dev;
	return 0;


out_free_netdev:
	free_netdev(dev);
out:
	if (net_eq(net, &init_net))
		panic("loopback: Failed to register netdevice: %d\n", err);
	return err;
}

/* Registered in net/core/dev.c */
struct pernet_operations __net_initdata loopback_net_ops = {
       .init = loopback_net_init,
};

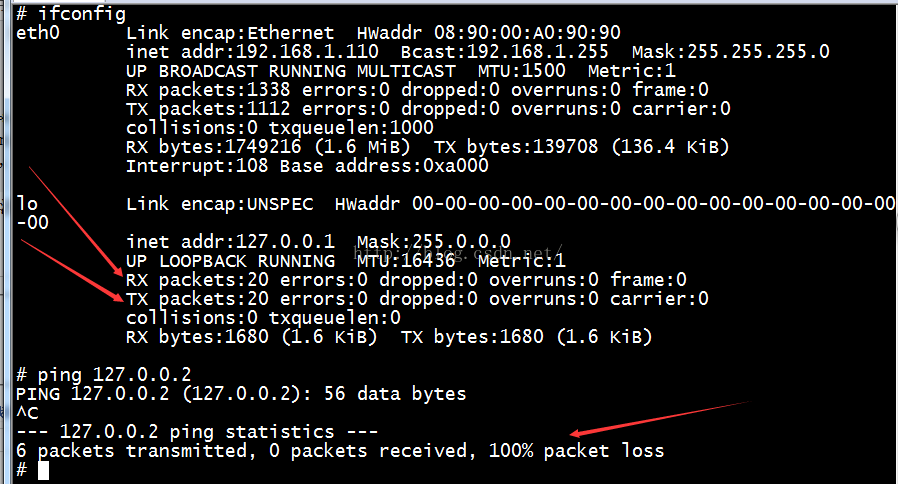

自己將兩份源碼對照著看了,暫時還沒找出原因,這裡先上一張錯誤的截圖以及我認為出錯的原因

\

在使用ifconfig命令的時候,發現RX, TX, 居然都有packets網絡包數據傳輸,當ping 127.0.0.x的時候會一直阻塞在哪裡,說明問題應該在初始化參數設置的部分!這裡有數據包發送但是沒有接收到數據包!說明數據接收部分,也就是回環發送部分有問題!這裡暫時先擱一下,後邊在殺個回馬槍來深入研究一下!
